P10600J70C_X01

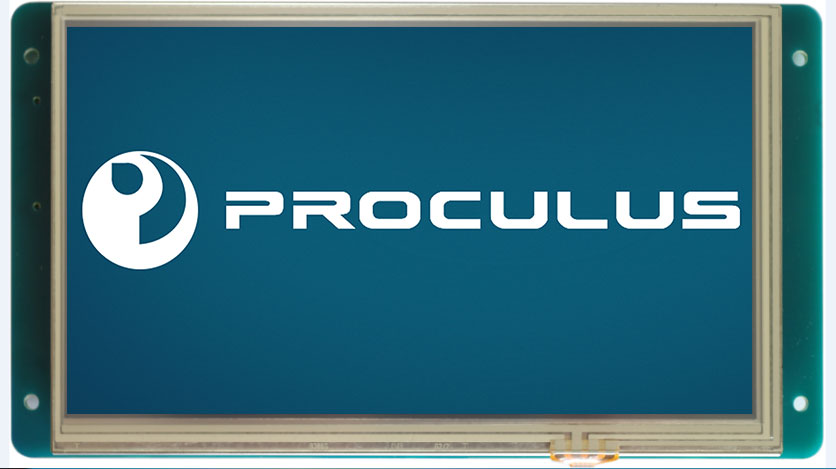

7.0 Inch 1024*600 LCD Module

Features of 7.0 Inch 1024*600 LCD Module

  • Support RS232/TTL/CMOS, the max baud rate is 921600bps;

  • Support hardware JPG decoding which makes storage more efficient and display quicker;

  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

  • Support backlight brightness adjustment and automatic standby screen saver function;

  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

Specifications of 7.0 Inch 1024*600 LCD Module

Modification Record

Date

Content

2019/03/28

First release

2020/09/09

ESD reliability testing has been added


Display

Color65K (65536) colors,16 bit color 5R6G5B
ACTIVE AREA / View Area154.1mm(width)×85.9mm(height)/156.4 mm(width)×88.8 mm(height)
Resolution1024*600,90° rotated display (600*1024)
Backlight /Lifecycle/BrightnessLED/20,000 HOURS/ 300 cd/m²/(64 level adjustment)
Working Temperature-20~+70℃/-30~+85℃


Voltage & Current

ItemConditionMin.Typ.Max.Unit
Power Voltage
12V
Operation CurrentVIN = 12V, Backlight on300mA
VIN = 12V, Backlight off65mA
Recommended Power Supply: 12V 1A DC


Reliability Test

ItemConditionMin.Typ.Max.Unit
Working Temperature60%RH at 5V voltage-202570
Storage Temperature--302585
Working Humidity25℃10%60%90%RH
Protective Paint--None--
Aging Test--8-H


Interface

ItemConditionMin.Typ.Max.Unit
Baud RateStandard1200115200921600bps
User Defined1200-921600bps

Output Voltage

(TXD, BUSY)

Output 1, Iout=1mA33.2-V
Output 0, Iout=-1mA-0.10.2V

Input Voltage

(RXD)

Input 1, Iin=1mA23.315V
Input 0, Iin=-1mA-1500.3V
InterfaceMode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232
SocketHY2.0-8P/10pin,1.0mm FFC
USBReserved (If needed, please contact our sales representative.)
SD slotYes (SD/SDHC, FAT32 file format)


Memory

ItemParameterMinTyp.MaxUnit
FlashSpace of Font-32-MB
Picture Storage (128MB)--93Pcs
Picture Storage (256MB)

215Pcs
Picture Storage (1GB)--932Pcs
User's Storage0-32MB

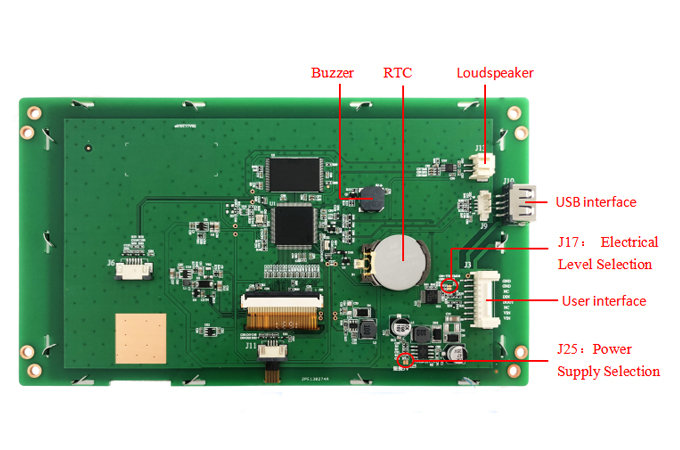

Peripherals

Buzzer

YES

RTC

YES

Resistive touch screen

YES

SD Card

YES


Pin definition

J3 Pin Num.

Pin Name

Remarks

J3 Pin Num.

Pin Name

Remarks

1

GND

5

DOUT

Serial output

2

GND

6

NC

Undefined

3

NC

Undefined

7

VIN

Power input

4

DIN

Serial input

8

VIN

Power input


Model number

P10600J70C_N01No Touch
P10600J70C_T01Resistive Touch
P10600J70C_P01Pcap Touch


Packaging and physical dimensions

Parameter

Data

Dimensions
190.4(width) ×105.2(height) ×14.5(thickness without TP) / 16.1(thickness with TP) mm

Net weight of single piece

TBD

Weight of whole case

TBD

Packing box size

480mm(L)×320mm(W)×230mm (H)

Packing specification

30 pieces /box

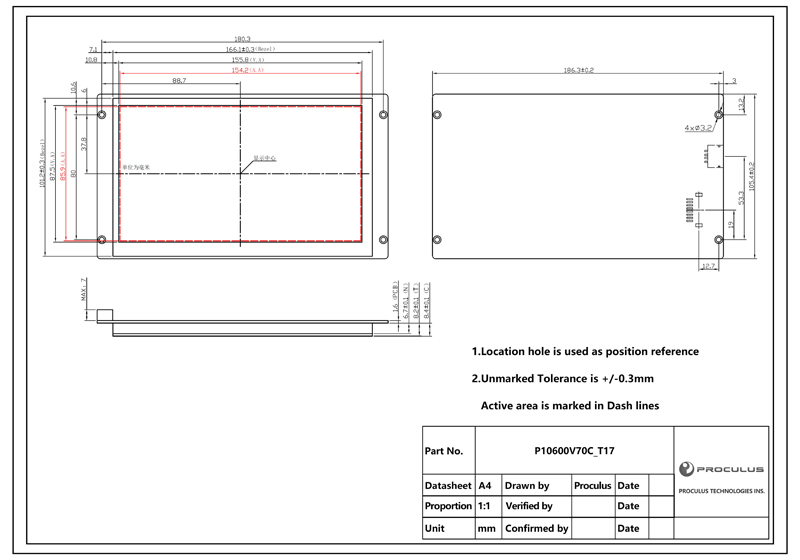

Technical Draws

All dimensions in millimeters, unless otherwise stated. Subject to change without notice, provided by the manufacturer.

P10768J150l_ T03-3.png
P10768J150l_ T03-3.png

Attachments

3D Models
P10768J1501_T03.stl
P10768J1501_T03.stl
