MODEL: P10768MS080I_T01

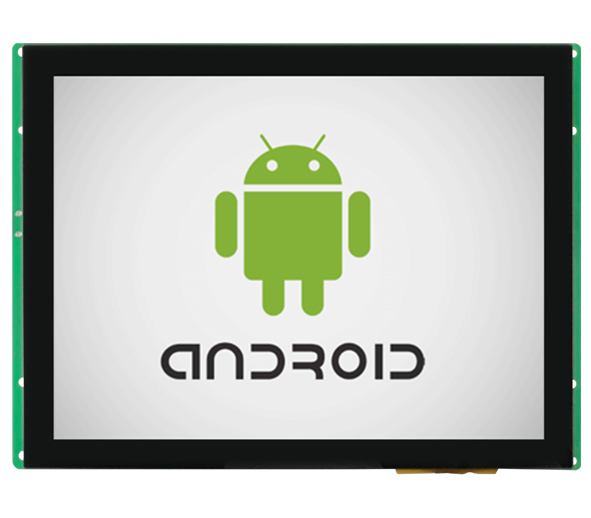

8.0 Inches, 1024xRGBx768, 16.7M Colors, Android LCM

P10768MS080I_T01 is an industrial level Android LCM based on Rockchip RK3188 ARM. It is equipped with  Quad-core Coretex-A9, supports most decoding solutions under 1080p@60fps, H.264/MVC/VP8 solutions under 1080p@30fps and many other great features of Rockchip RK3188. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.


RK3188 has high-performance external memory interface (DDR3/LPDDR2/LVDDR3) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 8 Inch Android LCD module

Core Board


CPU

1.6 GHz Quad-core A9 ARM

RAM

1GB DDR3

eMMC

8GB

GPU

Mali400MP4

Power Management

ACT8846 PMU



System Version

Android

Android 5.1

Ubuntu

Ubuntu 13.09 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.)


Display

Color

16.7M (16777216) colors, 24-bit color 8R8G8B.

Active Area (A.A.)

162.05 mm(W)×121.54 mm(H), 1024×768.

View Area (V.A.)

164.5 mm(W)×124.12mm(H), 1024×768.

Resolution

1024×768

Backlight

LED

Brightness

300nit


Optical Specifications

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Viewing Angle
(CR≧10)

θL

Φ=180° (9 o’clock)

75

85

Degree

θR

Φ=0° (3 o’clock)

75

85

θT

Φ=90° (12 o’clock)

75

85

θB

Φ=270° (6 o’clock)

75

85


Voltage & Current


Item

Condition

Min.

Typ.

Max.

Unit

Power Voltage


5

12

18

V

Operation Current

800

mA

Power Supply

12V 2A DC (Recommended).



Reliability Test

Item

Condition

Min.

Typ.

Max.

Unit

Working Temperature

60%RH at 12V voltage

-30

25

70

Storage Temperature

-30

25

85

Working Humidity

25℃

10%

60%

90%

RH

Protection Paint

None


Interface


Item

Condition

Min.

Typ.

Max.

Unit

Baud Rate

Standard

1200

9600

115200

bps

User Defin

1200

115200

bps

Serial Mode

Serial Port*5 (4*RS232/TTL, 1*RS485).

User Interface

Standard serial communication protocol. 4Pin_2.54mm socket.

USB

USB DEBUG*1. USB HOST*6.

Ethernet

Support 10m/100m Ethernet.

Wi-Fi

Support 802.11b/g/n Wi-Fi wireless network.

4G LTE Module

4G LTE Module/GPS.



Peripherals

Microphone

Audio input interface.

Loudspeaker

2-channel, 4Ω/3W loudspeaker.

HDMI

HDMI output interface.

TF card

Yes

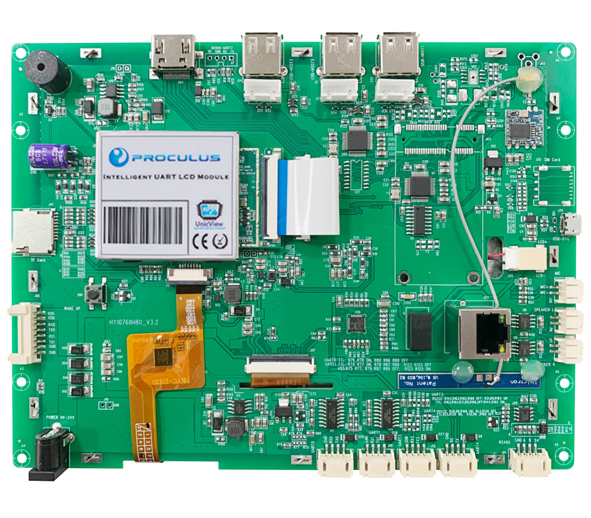

Interface Description of 8 Inch Android LCD module

8 Inch Android LCD module


Num.

Interface Name

Description

J0

Power

12V2A power supply

J1

UART0

Device name: ttyS0. Support RS232/TTL. Pin definition: GND, RX, TX, 5V

J2

UART1

Device name: ttyS1. Support RS232/TTL/485. Pin definition: GND, RX, TX, 5V (choose one from J2 ,J3 and J5)

J3

UART3

Device name: ttyS3. Support RS232/TTL/485. Pin definition: GND, RX, TX, 5V (choose one from J2 ,J3 and J5)

J4

UART4

Device name: COM0. Support RS232/TTL. Pin definition: GND, RX, TX, 5V

J5

RS485

Device name: ttyS0. Pin definition: GND, A, B, 5V (choose one from J2 ,J3 and J5)

J6

SPK_L

Left channel audio output interface

J7

SPK_R

Right channel audio output interface

J8

MIC

Audio input interface

J9

RJ45 interface

Support 10M/100M network

J10

USB_Micro

OTG /App debugging/ Firmware upgrade interface

J11

MINI PCIE 4G

4G LTE Module/GPS

J12

SIM card

Nano-SIM supported

J13

Wireless Network

Support IEEE802.11b/g/n network. Support Wireless & Bluetooth 2-in-1

J14

USB_HOST1

Vertical 4P2.54mm. Support USB Peripherals

J15

USB_HOST2

Vertical 4P2.54mm. Support USB Peripherals

J16

USB_HOST3

Vertical 4P2.54mm. Support USB Peripherals

J17

USB_HOST1

Horizontal USB2.0. Support USB Peripherals

J18

USB_HOST2

Horizontal USB2.0. Support USB Peripherals

J19

USB_HOST3

Horizontal USB2.0. Support USB Peripherals

J20

Debug Interface

not open temporarily

J21

HDMI

HDMI output interface

J22

Recovery

Short-circuit to enter firmware burning mode

J23

Buzzer


J24

RTC

Supply system RTC

J25

TF Card


J26

Wake Up


J27

User Interface

Pin Definition: 12V、12V、ttyS0-RX、ttyS0-TX、ttyS1-RX、ttyS1-TX、GND、GND
