P80600J80C_X01

81

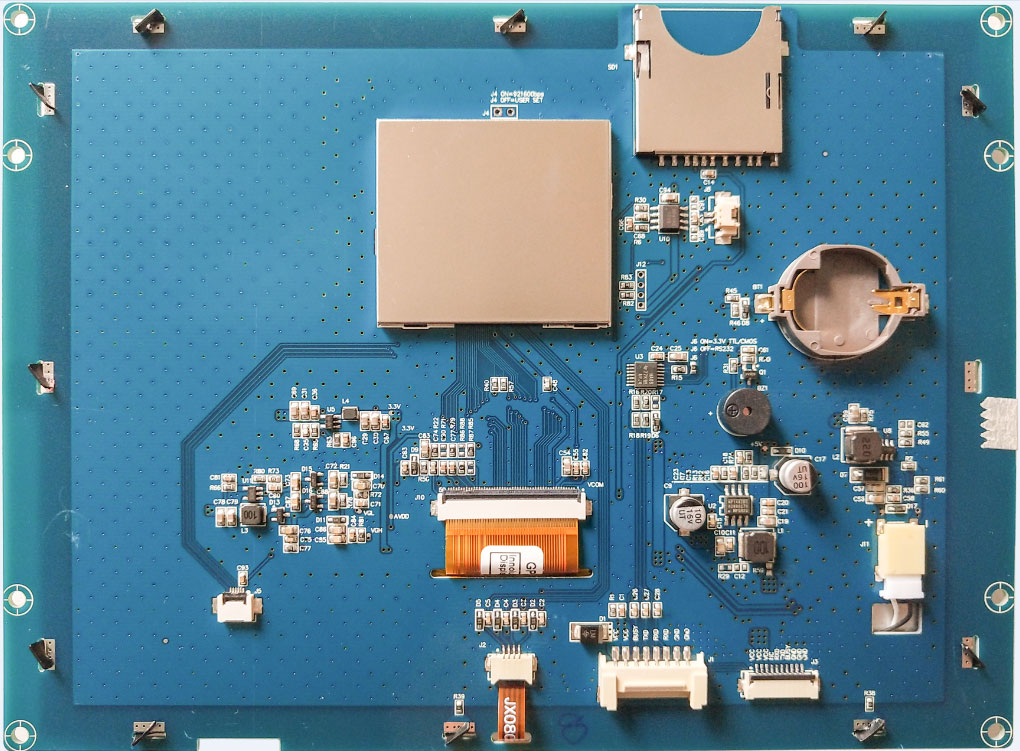

82

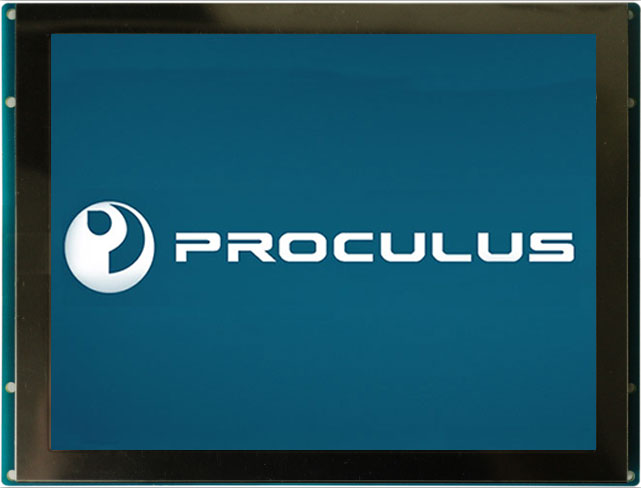

Features of 8.0 Inch 800*600 LCD Module

  • Support RS232/TTL/CMOS, the max baud rate is 921600bps;
  • Support audio;
  • Support hardware JPG decoding which makes storage more efficient and display quicker;
  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
  • Support backlight brightness adjustment and automatic standby screen saver function;
  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;
  • Support number and English input, customizable keyboard interface;
  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
  • Easy-to-use UnicView GUIs Development, no coding skills required;
  • Instant operation when power on without system load time;
  • Excellent electromagnetic compatibility characteristics.

Specifications of 8.0 Inch 800*600 LCD Module

Modification Record

Date

Content

2016/09/05

First release

2018/04/19
Audio interface added


Display

Color65K (65536) colors，16 bit color 5R6G5B
ACTIVE AREA / View Area162.0mm(width)×121.5mm(height)/164.8 mm(width)×124.3 mm(height)
Resolution800*600，90° rotated display (600*800)
Backlight /Lifecycle/BrightnessLED/20,000 HOURS/ 300 cd/m²/（64 level adjustment）
Working Temperature-10~+60℃/-30~+85℃


Voltage & Current

Item

Condition

Min.

Typ.

Max.

Unit

Power Voltage


—

12

—

V

Operation Current

VIN = 12V, Backlight on

—

330

—

mA

VIN = 12V, Backlight off

—

160

—

mA
Recommended Power Supply: 12V 1A DC


Reliability Test

ItemConditionMin.Typ.Max.Unit
Working Temperature60%RH at 12V voltage-102560℃
Storage Temperature--302585℃
Working Humidity25℃10%60%90%RH
Protective Paint--None--
Aging Test--8-H


Interface

ItemConditionMin.Typ.Max.Unit
Baud RateStandard1200115200921600bps
User Defined1200-921600bps

Output Voltage

（TXD, BUSY）

Output 1, Iout=1mA33.2-V
Output 0, Iout=-1mA-0.10.2V

Input Voltage

（RXD）

Input 1, Iin=1mA23.315V
Input 0, Iin=-1mA-1500.3V
InterfaceMode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232
SocketHY2.0-8P/10pin,1.0mm FFC
USBReserved (If needed, please contact our sales representative.）
SD slotYes (SD/SDHC, FAT32 file format)


Memory

ItemParameterMinTyp.MaxUnit
FlashSpace of Font-32-MB
Picture Storage (128MB)--93Pcs
Picture Storage (256MB)

215Pcs
Picture Storage (1GB)--932Pcs
User’s Storage0-32MB

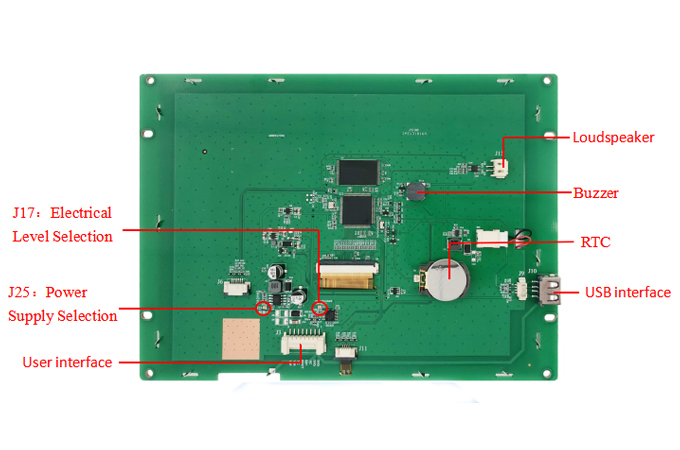

Peripherals

BuzzerYes
RTCYes
Resistive touch screenYes
SD CardYes
AudioYes


Model number

P80600J80C_N01No Touch
P80600J80C_T01Resistive Touch
P80600J80C_P01Pcap Touch

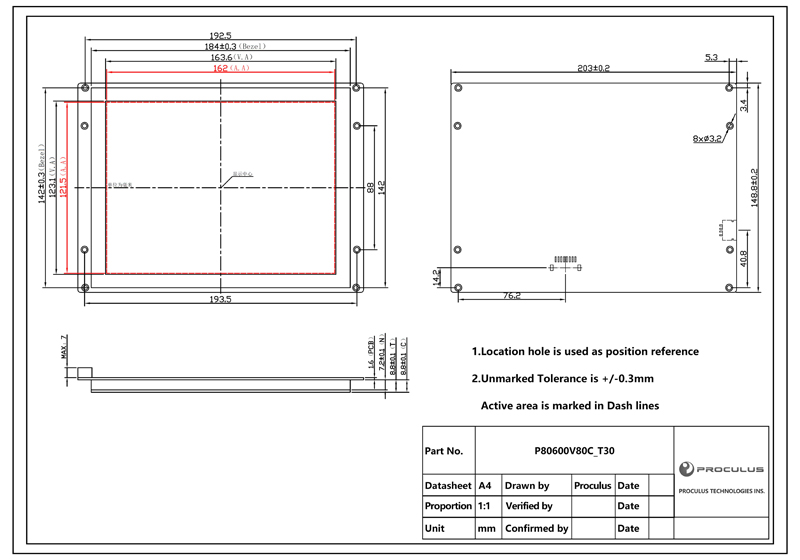

Packaging and physical dimensions

ParameterData
Dimensions199.4(width) ×148.8(height) ×17.8(thickness without TP) / 20.2(thickness with TP) mm
Net weight of single pieceTBD
Weight of whole caseTBD
Packing box size395mm(L)×330mm(W)×230mm (H)
Packing specification20 pieces /box
