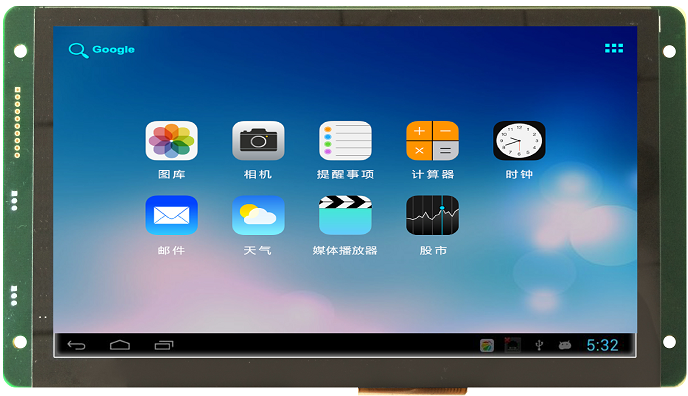

P80480MS050C_T01 is an industrial level Android LCM based on Rockchip RK3128 ARM. It is equipped with Quad-core Coretex-A7, supports most decoding solutions under 1080p@60fps, H.264/MVC/VP8 solutions under 1080p@30fps and many other great features of Rockchip RK3128. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.
RK3128 has high-performance external memory interface (DDR3/LPDDR2/LVDDR3) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

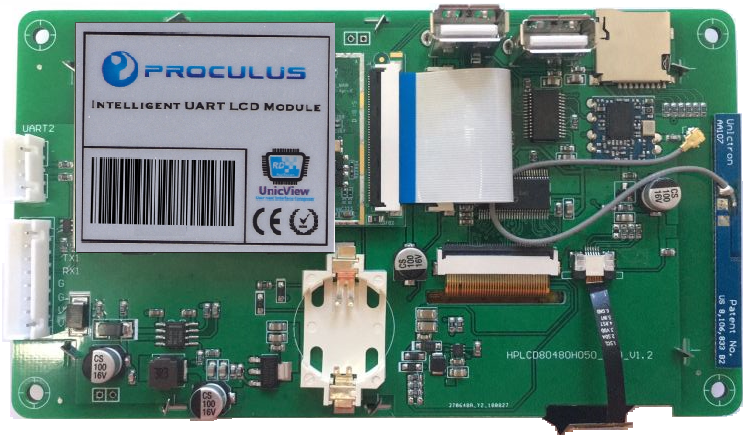

Core Board
Item | Parameter |
CPU | 1.3 GHz Quad-core A7 ARM |
RAM | 1GB DDR3 |
eMMC | 8GB |
GPU | Mali400MP4 |
Power Management | ACT8846 PMU |
System Version
Item | Parameter |
Android | Android 5.1/7.1 |
Ubuntu | Ubuntu 15.04 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.) |
Display
Item | Parameter |
Color | 16.7M (16777216) colors, 24-bit color 8R8G8B. |
Active Area (A.A.) | 108.0 mm(W)×64.8 mm(H), 800*480. |
View Area (V.A.) | 110.4 mm(W)×67.1 mm(H), 800*480. |
Resolution | 800*480 |
Backlight | LED |
Brightness | 300nit |
Optical Specifications
Item | Symbol | Condition | Values | Unit | ||
Min. | Typ. | Max. | ||||
Viewing Angle (CR≧10) | θL | Φ=180° (9 o'clock) | - | 70 | - | Degree |
θR | Φ=0° (3 o'clock) | - | 70 | - | ||
θT | Φ=90° (12 o'clock) | - | 50 | - | ||
θB | Φ=270° (6 o'clock) | - | 70 | - |
Voltage & Current
Item | Condition | Min | Typ. | Max | Unit |
Power Voltage | 6 | 12 | 24 | V | |
Operation Current | - | - | 400 | - | mA |
Power Supply | 12V 2A DC (Recommended) |
Reliability Test
Item | Condition | Min | Typ. | Max | Unit |
Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ |
Storage Temperature | - | -30 | 25 | 85 | ℃ |
Working Humidity | 25℃ | 10% | 60% | 90% | RH |
Protection Paint | - | - | None | - | - |
Interface
Item | Condition | Min | Typ. | Max | Unit |
Baud rate | Standard | - | 9600 | - | bps |
User Defin | 1200 | - | 115200 | bps | |
Serial Mode | Serial Port*2 (1*RS232/TTL, 1*RS232/TTL/RS485) | ||||
User Interface | Standard serial communication protocol. 8Pin_2.0mm socket. | ||||
USB | USB DEBUG*1. USB HOST*2. | ||||
Ethernet | Support 10m/100m Ethernet. | ||||
Wi-Fi | Support 802.11b/g/n Wi-Fi wireless network. | ||||
4G LTE Module | - |
Peripherals

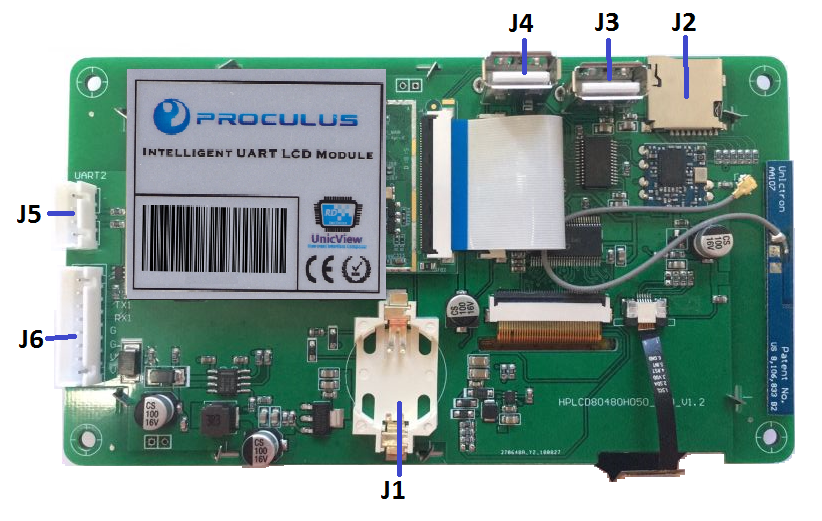

Microphone | 3.5mm Audio input interface. |
Loudspeaker | 3.5mm Audio output interface. |
IIC | — |
TF card | Yes |
GPIO | Reserved |
Num. | Interface Name | Description |
J0 | 4G interface | 4G Adapter plate interface |
J1 | USB interface | Support dual USB parallel use |
J2 | RJ45 interface | Support 10M/100M network |
J3 | UART0 | Device Name: TTYS0 /Pin Definition: 5V, RX0, TX0, GND |
J4 | UART2 | - |
J5 | RS485 | Device Name: TTYS0 /Pin Definition: 5V, A, B, GND |
J6 | Power | 12V2A power supply |
J7 | User interface | Device Name: TTYS1 /Pin Definition: RX1, RX1, TX1, TX1, G, G, V, V |
J8 | GPIO interface | Pin Definition: GPIO1, GPIO2, GPIO3, GND |
J9 | Battery interface | RTC power supply |
J10 | Audio interface | 3.5mm Audio Interface |
J11 | MIC interface | 3.5mm MIC interface |
J12 | OTG interface | OTG function /APP debugging interface/firmware upgrade interface |
J13 | TF interface | Memory Card |
