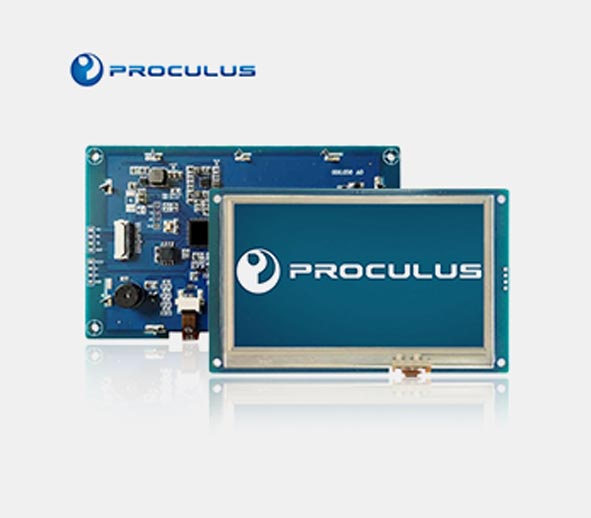

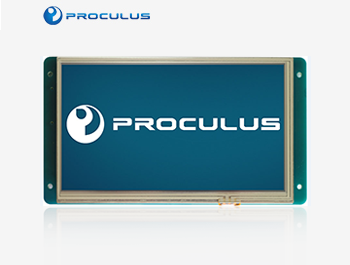

MODEL: P48272J43C_X02

4.3 Inches, 480xRGBx272, 65K Colors

Features of 4.3 Inch 480*272 LCD Module

  • Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;

  • Support RS232/TTL/CMOS, the max baud rate is 921600bps;

  • Support audio and video;

  • Support hardware JPG decoding which makes storage more efficient and display quicker;

  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

  • Support backlight brightness adjustment and automatic standby screen saver function;

  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

Specifications of 4.3 Inch 480*272 LCD Module

Display

Color

65K (65536) colors,16 bit color 5R6G5B

ACTIVE AREA / View Area

95.0mm(width)×53.9mm(height)/97.5 mm(width)×56.4 mm(height)

Resolution

480*272,90° rotated display (272*480)

Backlight /Lifecycle/Brightness

LED/20,000 HOURS/ 250 cd/m²/(64 level adjustment)

Working Temperature

-20~+70℃/-30~+85℃

Voltage & Current

Item

Condition

Min.

Typ.

Max.

Unit

Power Voltage


-

5.0

5.5

V

Operation Current

VIN = 5V, Backlight on

-

450

-

mA


VIN = 5V, Backlight off

-

260

-

mA

Recommended Power Supply: 5V 1A DC

Reliability Test

Item

Condition

Min.

Typ.

Max.

Unit

Working Temperature

 60%RH at 5V voltage

-20

25

70

Storage Temperature

-

-30

25

85

Working Humidity

25℃

10%

60%

90%

RH

Protective Paint

-

-

None

-

-

Aging Test

-

-

8

-

H

Interface

Item

Condition

Min.

Typ.

Max.

Unit

Baud Rate

Standard

1200

115200

921600

bps

User-Defined

1200

-

921600

bps

Output Voltage

(TXD、BUSY)

Output 1,Iout=1mA

3.0

3.2

-

V

Output 0,Iout=-1mA

-

0.1

0.2

V

Input Voltage

(RXD)

Input 1,Iin=1mA

2.0

3.3

15.0

V

Input 0,Iin=-1mA

-15.0

0.0

0.3

V

Interface

Mode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232

Socket

HY2.0-8P/10pin,1.0mm FFC

USB

None

SD slot

Yes (SD/SDHC, FAT32 file format)

Memory

Item

Parameter

Min

Typ.

Max

Unit

Flash

Space of Font

-

32

-

MB

Picture Storage (128MB)

-

-

365

Pcs

Picture Storage (256MB)

-

-

215

Pcs

Picture Storage (1GB)

-

-

932

Pcs

User’s Storage

0

-

32

MB

Peripherals

Buzzer

Yes

RTC

Yes

Resistive touch screen

Yes

SD Card

Yes

Model number

P48272J43C_N02

No Touch

P48272J43C_T02

Resistive Touch

P48272J43C_P02

Pcap Touch

Packaging and physical dimensions


Parameter

Data

Dimensions

121.9(width) ×74.4(height) ×12.6(thickness without TP) / 14.1(thickness with TP) mm

Net weight of single piece

TBD

Weight of whole case

TBD

Packing box size

TBD

Packing specification

120 pieces /box
