Modification Record
Date | Content |
2016/11/01 | First release |

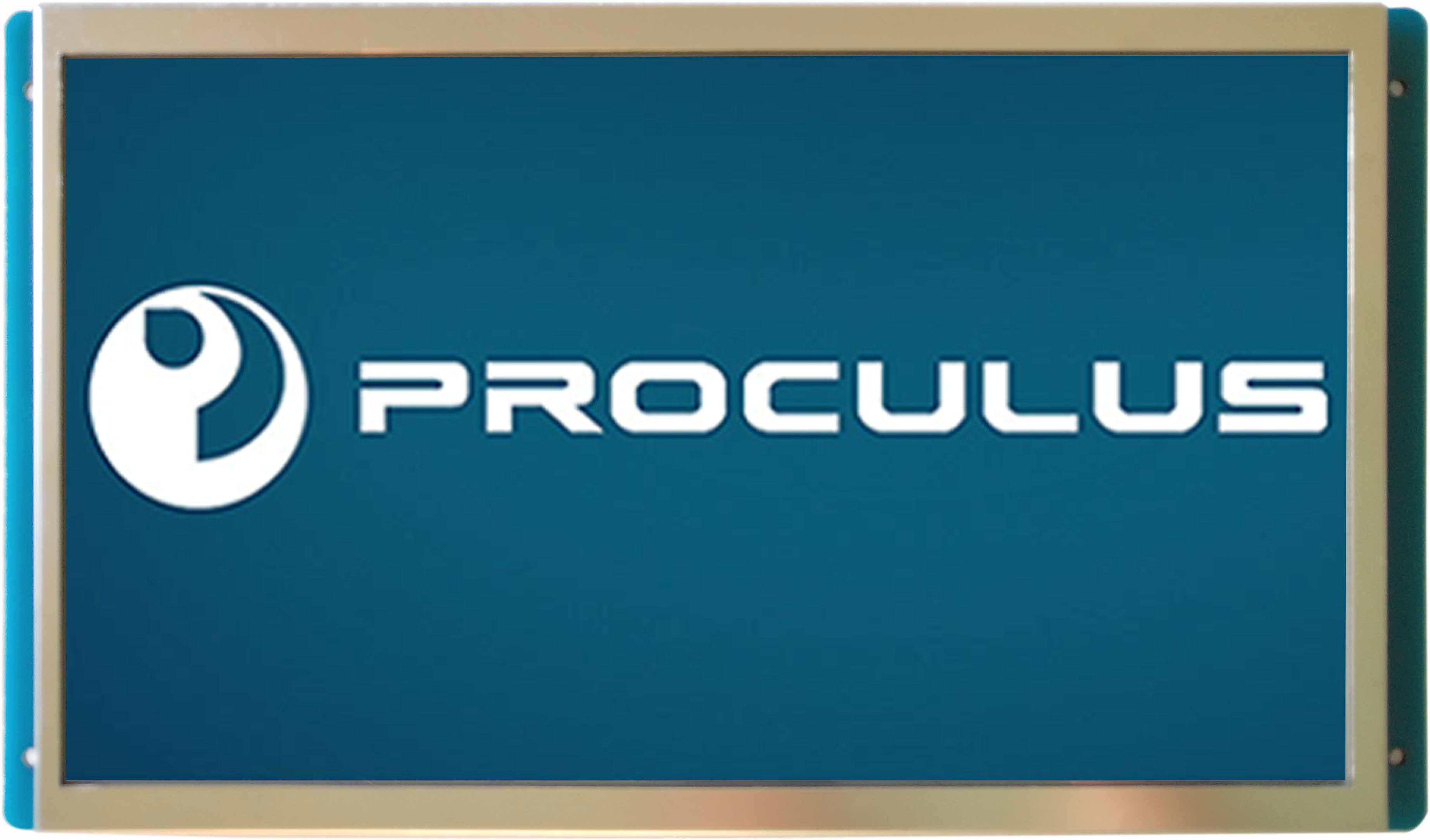

Display
| Color | 65K (65536) colors，16 bit color 5R6G5B |
| ACTIVE AREA / View Area | 222.7mm(width)×125.3mm(height)/225.9 mm(width)×127.9mm(height) |
| Resolution | 1024*600，90° rotated display (600*1024) |
| Backlight /Lifecycle/Brightness | LED/20,000 HOURS/ 300 cd/m²/（64 level adjustment） |
| Working Temperature | -20~+70℃/-30~+85℃ |
Voltage & Current
Item | Condition | Min. | Typ. | Max. | Unit |
Power Voltage | — | 12 | — | V | |
Operation Current | VIN = 12V, Backlight on | — | 350 | — | mA |
VIN = 12V, Backlight off | — | 170 | — | mA | |
Recommended Power Supply: 12V 1A DC | |||||
Reliability Test
| Item | Condition | Min. | Typ. | Max. | Unit |
| Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ |
| Storage Temperature | - | -30 | 25 | 85 | ℃ |
| Working Humidity | 25℃ | 10% | 50% | 90% | RH |
| Protective Paint | - | - | None | - | - |
| Aging Test | - | - | 8 | - | H |
Interface
| Item | Condition | Min. | Typ. | Max. | Unit |
| Baud Rate | Standard | 1200 | 115200 | 921600 | bps |
| User Defined | 1200 | - | 921600 | bps | |
Output Voltage （TXD, BUSY） | Output 1, Iout=1mA | 3 | 3.2 | - | V |
| Output 0, Iout=-1mA | - | 0.1 | 0.2 | V | |
Input Voltage （RXD） | Input 1, Iin=1mA | 2 | 3.3 | 15 | V |
| Input 0, Iin=-1mA | -15 | 0 | 0.3 | V | |
| Interface | Mode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232 | ||||
| Socket | HY2.0-8P/10pin,1.0mm FFC | ||||
| USB | Reserved (If needed, please contact our sales representative.） | ||||
| SD slot | Yes (SD/SDHC, FAT32 file format) | ||||
Memory
| Item | Parameter | Min | Typ. | Max | Unit |
| Flash | Space of Font | - | 32 | - | MB |
| Picture Storage (256MB) | 215 | Pcs | |||
| Picture Storage (1GB) | - | - | 932 | Pcs | |
| User's Storage | 0 | - | 32 | MB |

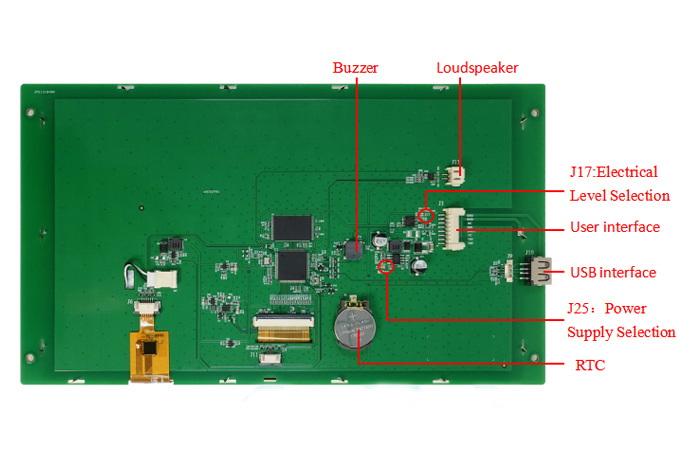

Peripherals
Buzzer | YES |
RTC | YES |
Resistive touch screen | YES |
SD Card | YES |
Model number
| P10600J101I_N01 | No Touch |
| P10600J101I_T01 | Resistive Touch |
| P10600J101I_P01 | Pcap Touch |

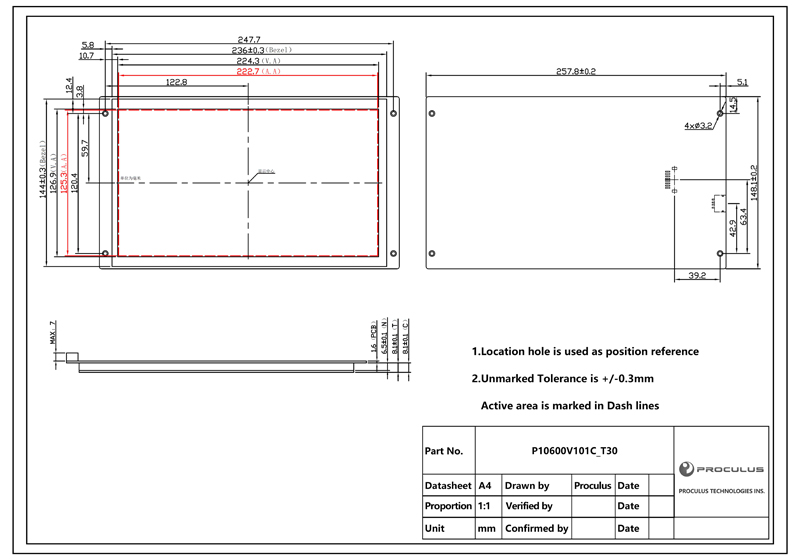

Packaging and physical dimensions
| Parameter | Data |
| Dimensions | 257.8(width) ×148.1(height) ×16.5(thickness with TP ) |
| Net weight of single piece | 750g |
| Weight of whole case | TBD |
| Packing box size | 480mm(L)×320mm(W)×230mm (H) |
| Packing specification | 15 pieces /box |
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: Carry out contact and air discharge on the periphery of the iron frame and the display area of the serial
port screen in turn, and observe whether the screen has abnormal working phenomena such as reset restart, black screen, white screen, communication interruption, and other abnormalities.
Discharge type | Discharge value | Result |
Contact discharge | ±6KV | Working properly. |
Air discharge | ±15KV | Working properly. |
Note: All tests are conducted when the products are exposed. In the actual use process, when the serial port screen is assembled on the user equipment, the screen and the equipment are kept well-grounded, the ESD performance of the whole machine will be better. | ||
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: The power supply line supplies power to the screen through the power supply after the pulse Group generator is coupled with the pulse Group; the serial port signal line carries out serial port communication with the screen through the signal after the pulse Group generator is coupled with the pulse Group; and the screen is observed whether abnormal working phenomena such as reset restart, black screen, white screen, abnormal communication, and communication interruption.
Test item | Test standard | Result | |
Voltage | Frequency | ||
Power cord | 4 KV | 100 KHz | Working properly. |
Signal line | 2 KV | 100 KHz | Working properly. |
