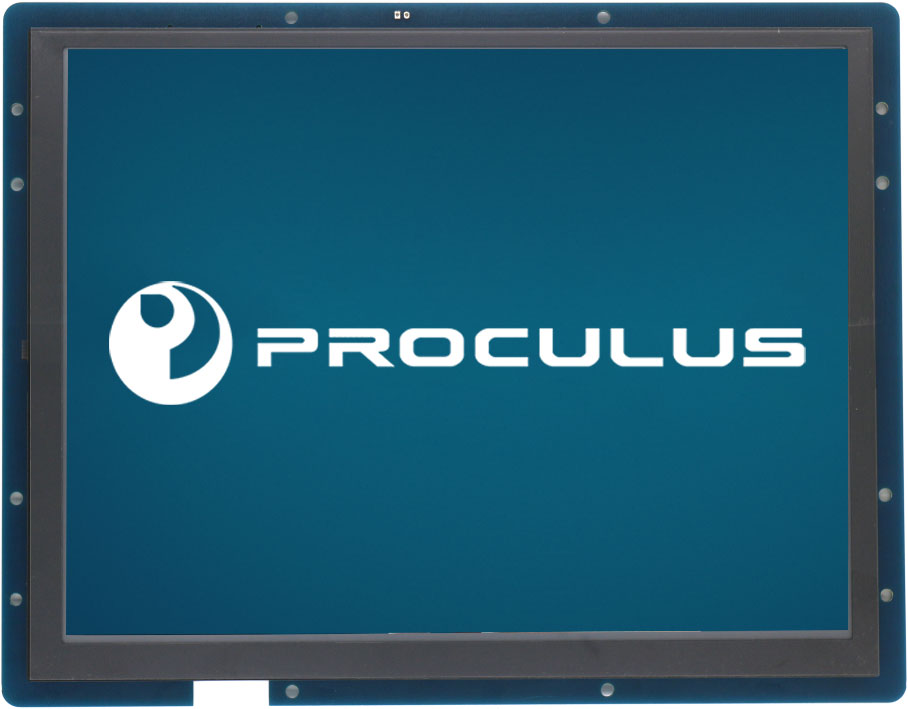

MODEL: P80600V104I_T30

10.4 Inches, 800xRGBx600, 65K Colors

Features of 10.4 Inch 800*600 LCD Module

  • Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;

  • Support RS232/TTL/CMOS, the max baud rate is 115200bps;

  • Support audio and video;

  • Support hardware JPG decoding which makes storage more efficient and display quicker;

  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

  • Support backlight brightness adjustment and automatic standby screen saver function;

  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

Specifications of 10.4 Inch 800*600 LCD Module

Modification Record


Date

Content

2019/04/24

First release

2020/09/18

ESD reliability testing has been added



Display


Color

65K (65536) colors,16 bit color 5R6G5B

Visual Angle L/R/U/D

70°/70°/50°/70°

Resolution

800*600,90° rotated display (600*800)

Backlight /Lifecycle/Brightness

LED/20,000 HOURS/ 350 cd/m²/(100 level adjustment)

Working Temperature

-20~+70℃/-30~+80℃



Voltage & Current


Item

Condition

Min.

Typ.

Max.

Unit

Power Voltage


6

12

35

V

Operation Current

VIN = 12V, Backlight on

360

mA

VIN = 12V, Backlight off

120


Note:Short-circuit J25 to choose Power Input as 5V (4.5V~5.5V)



Interface


Item

Condition

Min.

Typ.

Max.

Unit

Baud Rate

Standard

1200

115200

bps

Interface

RS232(Short-circuit J17/J18 to choose TTL/CMOS)

Data Format

1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end.



Peripherals


Buzzer

YES

RTC

YES

Audio Port

Support *.MP3 format. No time limit for single file. Theoretically 4096 files at maximum. Loudspeaker: 8Ω2W.

USB

YES. For downloading offline or data copy.

Memory

128M(support *.jpg files, maximum 65536 files theoretically), extended to 1G at maximum.



Pin definition


J3 Pin Num.

Pin Name

Remarks

J3 Pin Num.

Pin Name

Remarks

1

GND

5

DOUT

Serial output

2

GND

6

NC

Undefined

3

NC

Undefined

7

VIN

Power input

4

DIN

Serial input

8

VIN

Power input

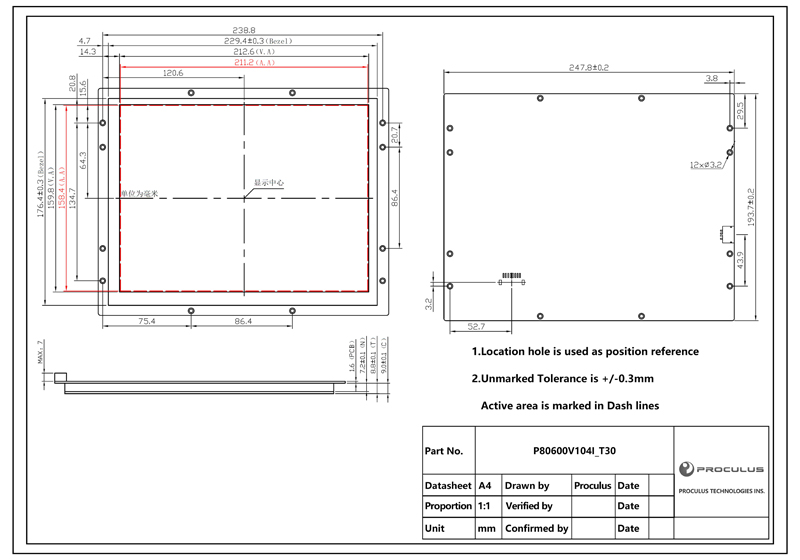

Packaging and physical dimensions

Parameter

Data

Net weight of single piece

575g (no touch)/696g(resistive touch screen)/728g (capacitive touch screen)

Weight of whole case

12.7kg (no touch)/15.2kg(resistive touch screen)/15.8kg (capacitive touch screen)

Packing box size

500(mm)×335(mm)×245(mm)

Packing specification

20 pieces /box


Immunity Test of 10.4 Inch 800*600 LCD Module

ESD test for electrostatic discharge

Test ambient temperature: 25℃

Test ambient humidity: 50%

Test process: Carry out contact and air discharge on the periphery of the iron frame and the display area of the serial port screen in turn, and observe whether the screen has abnormal working phenomena such as reset restart, black screen, white screen, communication interruption, and other abnormalities.



Discharge type

Discharge value

Result

Contact discharge

±6KV

Working properly.

Air discharge

±15KV

Working properly.

Note: All tests are conducted when the products are exposed. In the actual use process, when the serial port screen is assembled on the user equipment, the screen and the equipment are kept well-grounded, the ESD performance of the whole machine will be better.


EFT Test

Test ambient temperature: 25℃

Test ambient humidity: 50%

Test process: The power supply line supplies power to the screen through the power supply after the pulse Group generator is coupled with the pulse Group; the serial port signal line carries out serial port communication with the screen through the signal after the pulse Group generator is coupled with the pulse Group; and the screen is observed whether abnormal working phenomena such as reset restart, black screen, white screen, abnormal communication, and communication interruption.



Test item

Test standard

Result

Voltage

Frequency

Power cord

4 KV

100 KHz

Working properly.

Signal line

2 KV

100 KHz

Working properly.

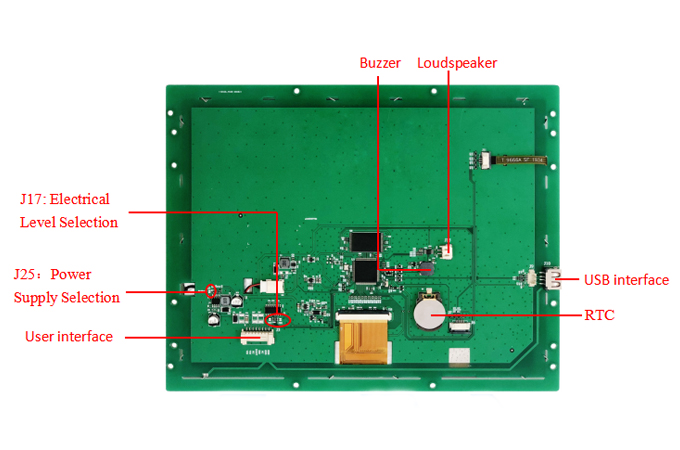

Interface Description of 10.4 Inch 800*600 LCD Module

10.4 Inch 800*600 LCD Module

Interface Name

Description

Loudspeaker

8Ω/3W, PH2.0-2 socket.

USB interface

For downloading offline or data copy. Cannot be used for power supply.

Please refer to UnicView Connection Guide.

User interface

Used for power supply serial communication.

Standard serial communication protocol. 8 pin_2.0mm socket.

Note: The products of our company may always be updated, and are subject to change without notice unless modification of key structure process or major adjustment of layout is involved. The real products shall prevail.
