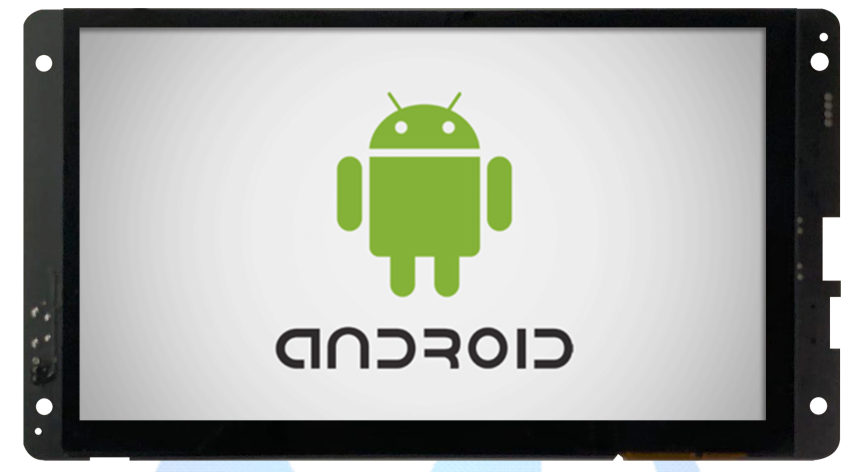

MODEL: P10600MS070I_T01

7.0 Inches, 1024xRGBx600, 16.7M Colors, Android LCM

P10600MS070I_T01 is an industrial level Android LCM based on Rockchip RK3188 ARM. It is equipped with Quad-core Coretex-A9, supports most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps, and many other great features of Rockchip RK3288. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.


RK3188 has a high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interfaces to support very flexible applications.


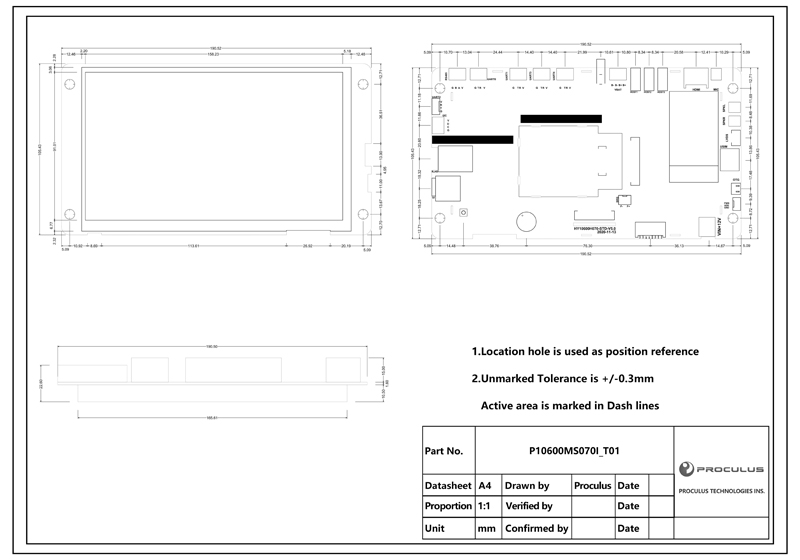

Specifications of 7 Inch Android LCD module

Core Board

CPU

1.6 GHz Quad-core A9 ARM

RAM

1GB DDR3

eMMC

8GB

GPU

Mali400MP4

Power Management

ACT8846 PMU


System Version

Android

Android 5.1/7.1

Ubuntu

Ubuntu 13.09 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.)


Display

Color

16.7M (16777216) colors, 24-bit color 8R8G8B.

Active Area (A.A.)

154.08 mm(W)×85.92 mm(H), 1024×600.

View Area (V.A.)

155.96 mm(W)×88.87mm(H), 1024×600.

Resolution

1024×600

Backlight

LED

Brightness

350nit


Optical Specifications

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Viewing Angle
(CR≧10)

θL

Φ=180° (9 o’clock)

70

80

Degree

θR

Φ=0° (3 o’clock)

70

80

θT

Φ=90° (12 o’clock)

50

60

θB

Φ=270° (6 o’clock)

60

70


Voltage & Current

Item

Condition

Min.

Typ.

Max.

Unit

Power Voltage


5

12

18

V

Operation Current

800

mA

Power Supply

12V 2A DC (Recommended).


Reliability Test

Item

Condition

Min.

Typ.

Max.

Unit

Working Temperature

60%RH at 12V voltage

-30

25

70

Storage Temperature

-30

25

85

Working Humidity

25℃

10%

60%

90%

RH

Protection Paint

None


Interface

Item

Condition

Min.

Typ.

Max.

Unit

Baud Rate

Standard

1200

9600

115200

bps

User Defin

1200

115200

bps

Serial Mode

Serial Port*3 (2*RS232/TTL, 1*RS232/TTL/RS485);1*RS232/TTL is optional.

User Interface

Standard serial communication protocol. 8Pin_2.0mm socket.

USB

USB DEBUG*1. USB HOST*2.  1*USB HOST is optional.

Ethernet

Support 10m/100m Ethernet.

Wi-Fi

Support 802.11b/g/n Wi-Fi wireless network.

4G LTE Module

4G LTE Module/GPS.(optional)


Peripherals

Microphone

Audio input interface.

Loudspeaker

2-channel, 4Ω/3W loudspeaker.

HDMI

HDMI output interface. (optional)

IIC

Optional

TF card

Yes

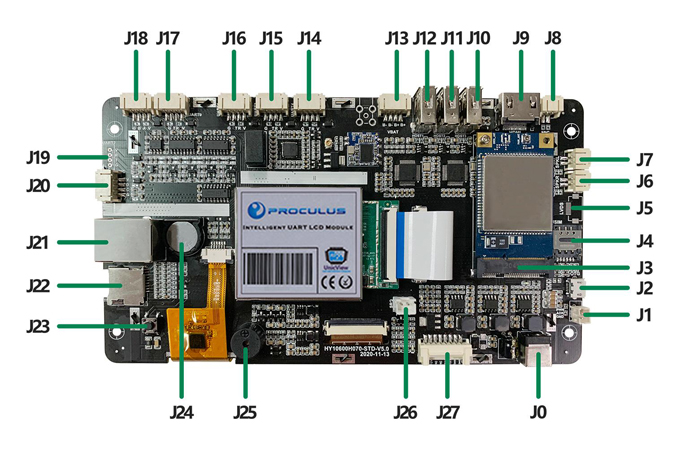

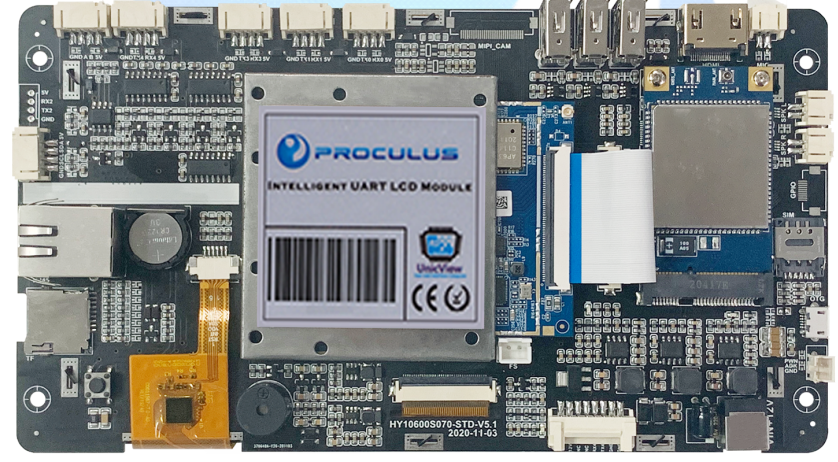

Interface Description of 7 Inch Android LCD module

7 Inch Android LCD module

Num.

Interface Name

Description

J0

Power

12V2A power supply

J1

Wake-up


J2

USB_Micro

OTG /App debugging/ Firmware upgrade interface

J3

MINI PCIE 4G

4G LTE Module/GPS (Optional)

J4

SIM card

Nano-SIM supported (Optional)

J5

GPIO interface

Reserved

J6

SPK_R

Right channel audio output interface

J7

SPK_L

Left channel audio output interface

J8

MIC

Audio input interface

J9

HDMI

HDMI output interface (Optional)

J10

USB_HOST3

Support USB Peripherals (Optional)

J11

USB_HOST2

Support USB Peripherals

J12

USB_HOST1

Support USB Peripherals/Support dual USB parallel use

J13

Power

External lithium-ion battery (Only available for RK3128)

J14

UART4

Device name: COM0. Pin definition: 5V, RXD, TXD, GND (Optional)

J15

UART3

Device name: ttyS3. Pin definition: 5V, RXD, TXD, GND

J16

UART1

Device name: ttyS1. Pin definition: 5V, RXD, TXD, GND

J17

UART0

Device name: ttyS0. Pin definition: 5V, RXD, TXD, GND/Same as J18

J18

RS485

Device name: ttyS0. Pin definition: 5V, A, B, GND/Same as J17

J19

Debug interface

not open temporarily

J20

IIC communication

Pin definition: 5V, SDA, SCL, GND (Reserved)

J21

RJ45 interface

Support 10M/100M network

J22

TF card


J23

Wake-up


J24

RTC

Supply system RTC

J25

Buzzer


J26

Radiator interface

Reserved

J27

User interface

Pin Definition: 12V, 12V, NC, NC, RXD, TXD, GND, GND

Note: J13 is only available for RK3128, and J15 is only available for RK3188.
