P10768_150X_L0101

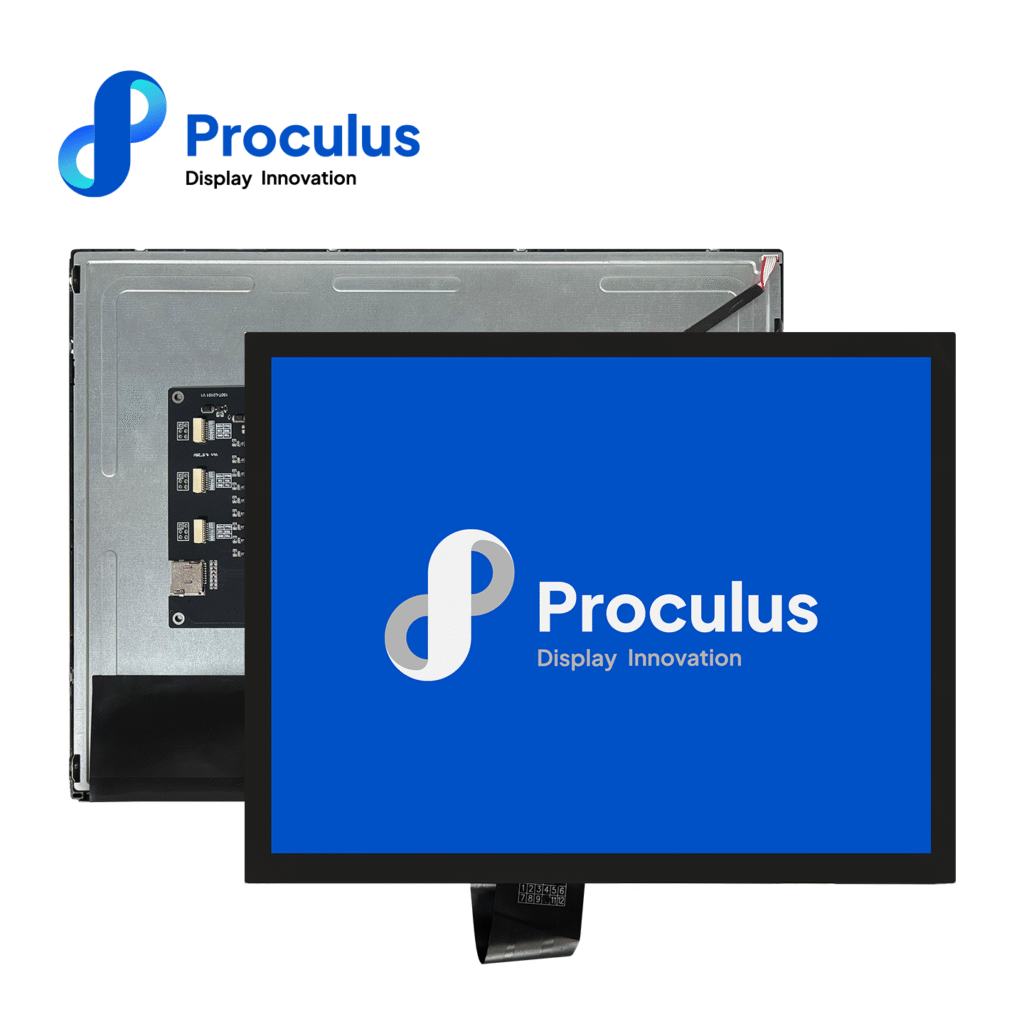

Features of 15.0 Inch 1024*768 LCD Module

Support wide range of power supply：Default is 4.5~25V
Support TTL/CMOS, the max baud rate is 3,125 Mbps;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.

Display

Color	65K (65536) colors，16 bit color 5R6G5B
Resolution	1024768，90° rotated display (7681024)
Brilliance	300 cd/m²
Active area (WxH)	304.1mm(width)×228.1mm(height)
Backlight Type	LED
Voltage & Current

Item		Min.		Typ.	Max.	Unit	Notes
Power Voltage		4.5		12	25	V	Tolerates polarity reversal.
Output voltage for peripherals (Vout or 5V0)		–		5	–	V	–
Output Current for Peripherals (Iout)		–		–	25	mA	–
Output voltage (TX0, TX1, TX2)		–		3.3V	–	mA	High level
		–		0	0	mA	Low level
Input voltage (RX0, RX1, RX2)		–		3.3V	–	V	High level
		–		0	–	V	Low level
Interface

Item		Condition		Min.	Typ.	Max.	Unit
Baud Rate		Standard		1200	—	312500	bps
Interface		TTL/CMOS
Peripherals

Touchscreen Panel		Resistive
Buzzer		YES
RTC		YES
Audio		–
Project Recording		SD Card and Serial Communication.
Memory		128MB (total). Expandable via SD Card (FAT32) up to 32 GB.
Other Info
Working Temperature			-20℃~70℃
Storage Temperature			-30℃~85℃
Fixation			Drilling for M3 screw
Carcass			Castless
