P10600HY070Z_T01

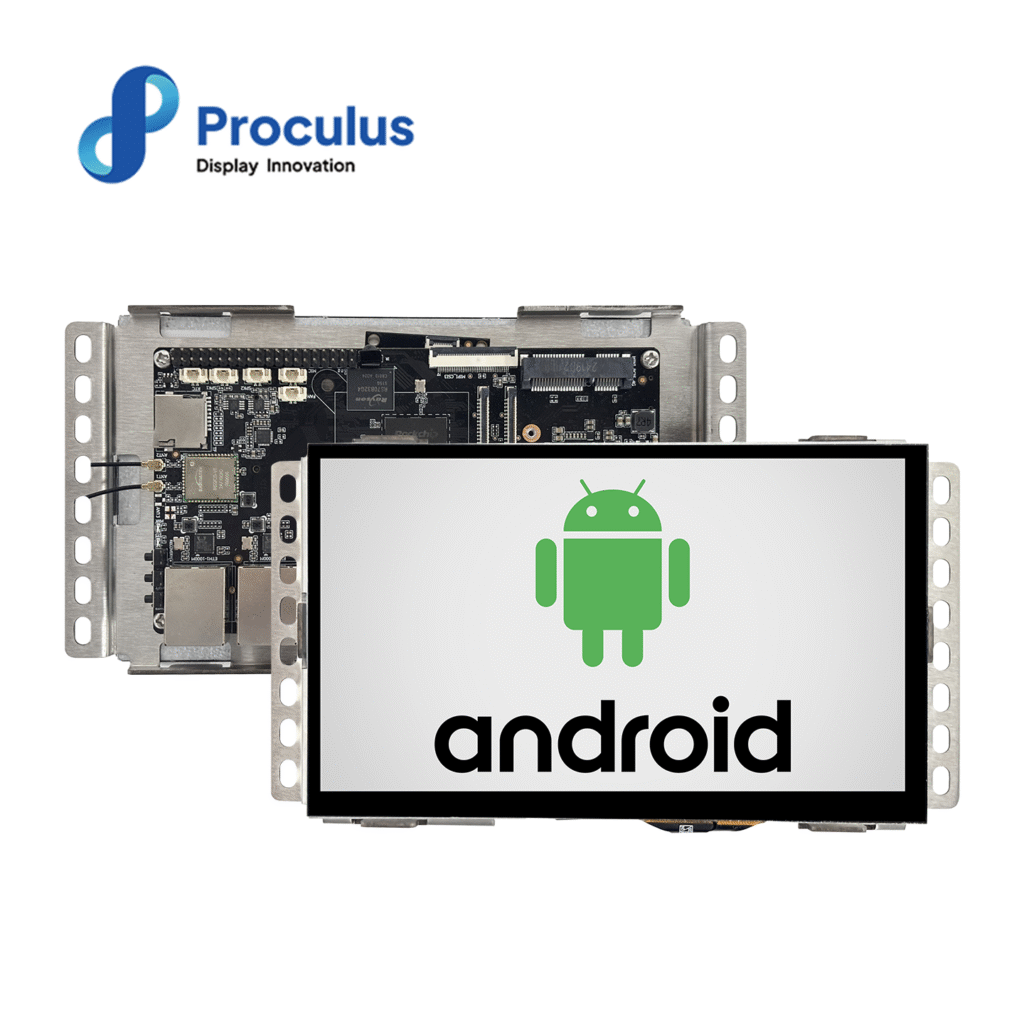

HY10600Z070_T01 is an industrial-grade Android serial port LCD screen based on the Rockchip RK3576 ARM processor. This product features 4-core Cortex-A72 and 4-core Cortex-A53 processors with a main frequency as high as 2.2GHZ, offering low power consumption and high performance. Video decoding supports 8K@30fps/4K@120fps, video encoding supports 4K@60fps, supports HDMI and MIPI display interfaces, and features a high-performance NPU with 6 TOPS computing power.

Supported by the Android 14 system, with industrial-grade parameter performance, it brings an excellent and stable experience to your product.

Specifications of 7.0 Inch 1024*600 Android LCM

Core Performance
CPU	Cortex-A724,Cortex-A534
RAM	4G / 8G / 16G
eMMC	16G / 32G
GPU	Mali G52 MC3
NPU	RKNN 6 Tops

System Version
Android	Support Android 14
Linux	Support Debian12 / Ubuntu2404

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 1024×600
View Area Size	155.96 mm(W)×88.87mm(H), 1024×600
Resolution	1024×600
Backlight Mode	LED
Luminance	350

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	Support
GPIO	Support
IIC	Support
TF Card	Support
HDMI OUT	Support
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	12	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	70	80	—	Deg
	θR	Φ=0° (3 o’clock)	70	80	—
	θT	Φ=90° (12 o’clock)	50	60	—
	θB	Φ=270° (6 o’clock)	60	70	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	–	User Interface	–

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 3.0 HOSTx3. USB3.1 OTG/ DP v1.4	WIFI	Support 802.11b/g/n Wi-Fi 2.4G/5G
Bluetooth	Bluetooth 5.0	4G	4G /GPS (Optional）
Ethernet	Support 10m/100m/1000m Ethernet*2	Gyroscope	—
NFC	—	Light sensor	—
M.2	Support	Infrared receiver	Support
