P10600HY070K_T01

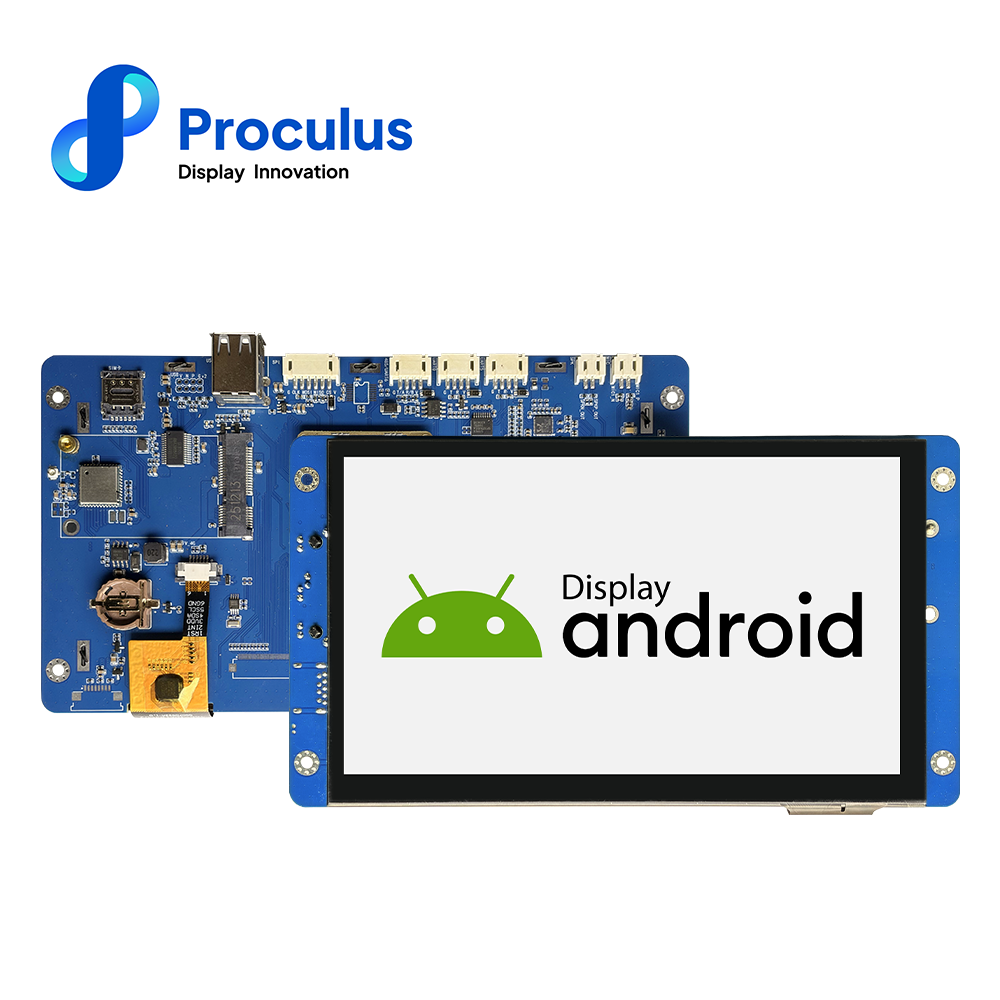

P10600HY070K_T01 is an industrial level Android LCM based on Rockchip RK3568B2 ARM. It is equipped with Quad-core Coretex-A55, supporting most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions and many other great features of Rockchip RK3568. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and OpenVG1.1. Rockchip RK3568 has high-performance external memory interface capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Core Performance
CPU	2.0GHz Quad-core A55 ARM
RAM	2GB LPDDR4X
eMMC	Default 32GB, Support 16/32/64GB
GPU	Mali-G52, 1TOPS
Power Manager	RK809-5

System Version
Android	Support Android 11/13
Linux	Support Linux+QT5.12

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 1024×600
View Area Size	155.96 mm(W)×88.87mm(H), 1024×600
Resolution	1024×600
Backlight Mode	LED
Luminance	350

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	Support
GPIO	Not support
IIC	Not support
TF Card	Not support
HDMI OUT	Not support
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	24	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle（CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	70	80	—	Deg
	θR	Φ=0° (3 o’clock)	70	80	—
	θT	Φ=90° (12 o’clock)	50	60	—
	θB	Φ=270° (6 o’clock)	60	70	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	None	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	2RS232/TTL,1RS232/RS485/TTL	User Interface —

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 3.0 OTG1. USB 2.0 HOST2.	WIFI	Support 802.11b/g/n/ac Wi-Fi 2.4G/5G
Bluetooth	Bluetooth 4.2	4G	4G /GPS (Optional)
Ethernet	Support 10m/100m/1000m Ethernet*2	Gyroscope	—
NFC	—	Light sensor	—
