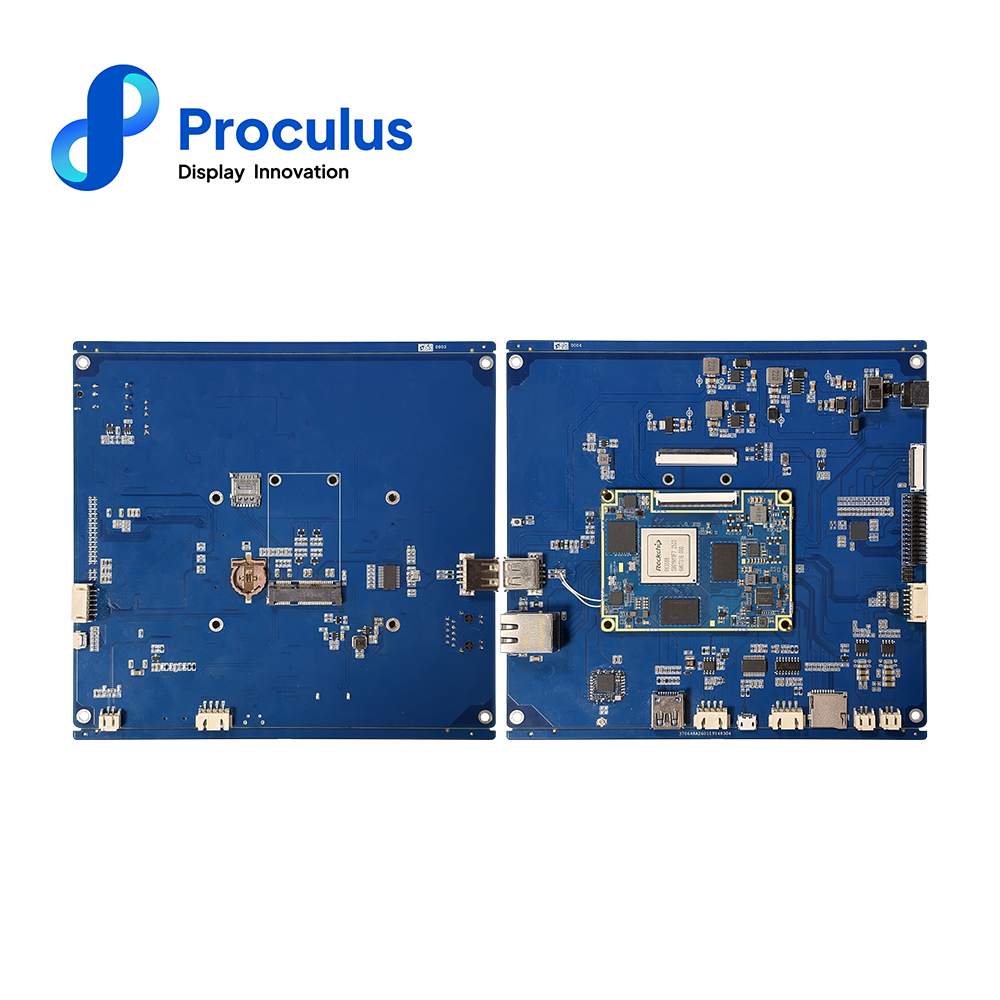

PR588_EVB

PR588_EVB is an industrial-grade Android reference module based on the Rockchip RK3588 ARM processor. using 8nm advanced manufacturing process. It has an 8-core 64-bit architecture, offering high performance and low power consumption. Video decoding supports 8K@60fps/4K@120fps, with 6TOPS computing power. In terms of hardware, this product offers the option of capacitive touch control, TFT color LCD screen, support for 10.1-inch LVDS LCD screen, optional 7-inch MIPI LCD screen, 15-inch LVDS LCD screen, and memory options of 4/8GB or 32/64GB eMMC.

Specifications of Android LCM

Core Performance
CPU	Cortex-A764, Cortex-A554
RAM	4G / 8G
eMMC	32G / 64G
GPU	ARM Mali-G610 MC4
NPU	RKNN 6 Tops

System Version
Android	Support Android 14
Linux	Support Debian12 / Ubuntu2204

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	7 inches, 10.1 inches, 15 inches are available.
View Area Size	—
Resolution	1024×600, 1280×800, 1024×768 (Correspond to the sizes of LCD screens)
Backlight Mode	LED
Luminance	500

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	—
GPIO	—
IIC	—
TF Card	Support
HDMI OUT	—
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	24	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle（CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	—	—	—	Deg
	θR	Φ=0° (3 o’clock)	—	—	—
	θT	Φ=90° (12 o’clock)	—	—	—
	θB	Φ=270° (6 o’clock)	—	—	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	None	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	—	User Interface —

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 3.0 x1, USB 2.0 x2, USB OTG x1	WIFI	Support 802.11b/g/n Wi-Fi 2.4G/5G
Bluetooth	Bluetooth 4.2	4G	4G /GPS (Optional)
Ethernet	Support 10m/100m/1000m Ethernet	Gyroscope	—
NFC	—	Light sensor	—
M.2	—	Infrared receiver	—
