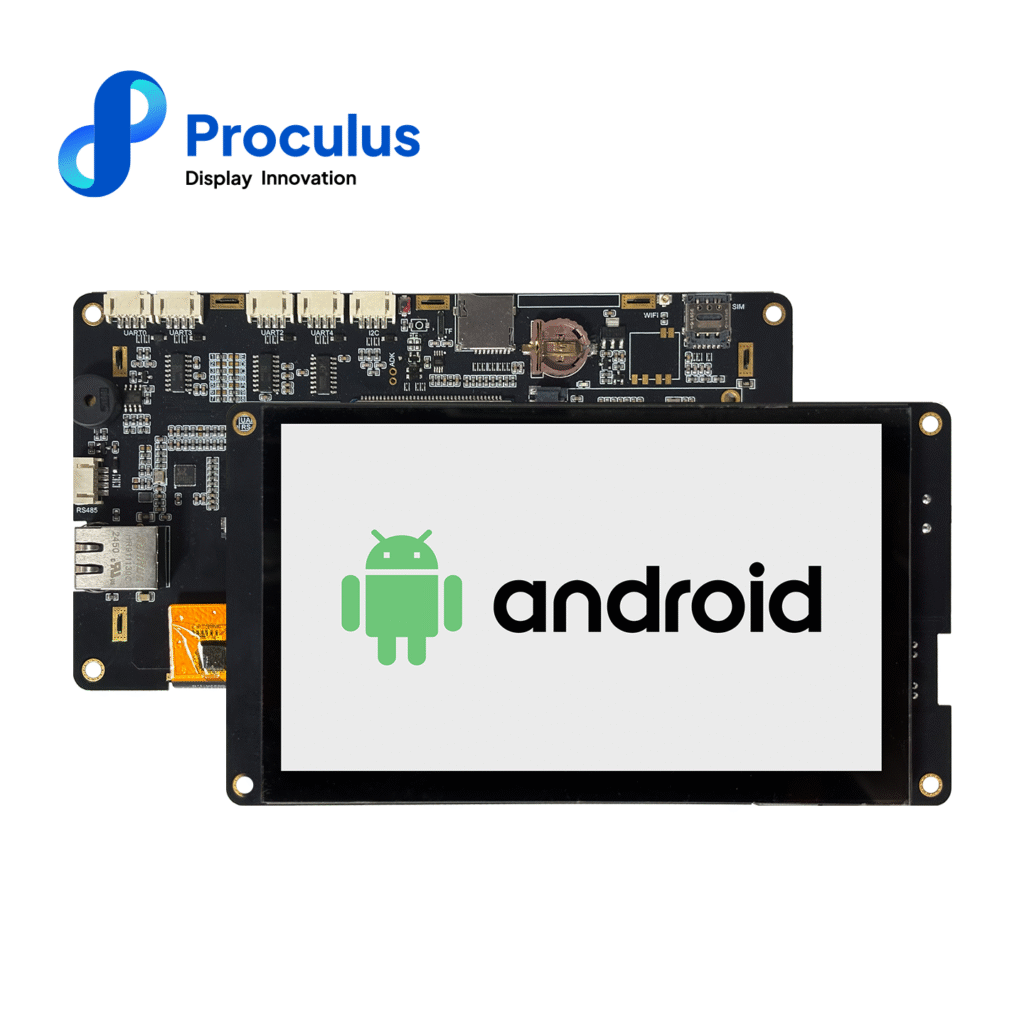

P10600HY070D_T01

Features of 7.0 Inches, 1024xRGBx600, 16.7M Colors, Android LCM

HY10600D070_T01 is a product that integrates the RK3562 IoT chip from Rockchip. It features a high-performance quad-core ARM Cortex-A53 CPU, ARM Mali G52 GPU, 13 M ISP HDR, and 1T NPU computing power. With its powerful performance, it meets the customers’ demands for automation in industrial applications and high computing power and multimedia functions in consumer applications. Rockchip RK3562 has high-performance external memory interface (LP4/ LP4x) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 7.0 Inches, 1024xRGBx600, 16.7M Colors, Android LCM

Core Performance
CPU	1.8GHz Quad-core A53 ARM
RAM	1GB DDR4 / 2GB DDR4 / 4GB DDR4
eMMC	8GB / 32GB / 64GB
GPU	Mali-G52
Computility	1 TOPS NPU

System Version
Android	Support Android 13
Linux	Support Linux+QT5.12

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 1024×600
View Area Size	155.96 mm(W)×88.87mm(H), 1024×600
Resolution	1024×600
Backlight Mode	LED
Luminance	500

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	Support
GPIO	Nonsupport
IIC	Support
TF Card	Support
HDMI OUT	Nonsupport
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	24	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	70	80	—	Deg
	θR	Φ=0° (3 o’clock)	70	80	—
	θT	Φ=90° (12 o’clock)	50	60	—
	θB	Φ=270° (6 o’clock)	60	70	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	4RS232/TTL,1RS485/TTL	User Interface	–

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB OTG1. USB 2.0 HOST3.	WIFI	Support 802.11b/g/n Wi-Fi 2.4G/5G
Bluetooth	Optional	4G	4G /GPS (Optional）
Ethernet	10m/100m/1000m Ethernet	Gyroscope	—
NFC	—	Light sensor	—
