P10600HY070C_B01_2

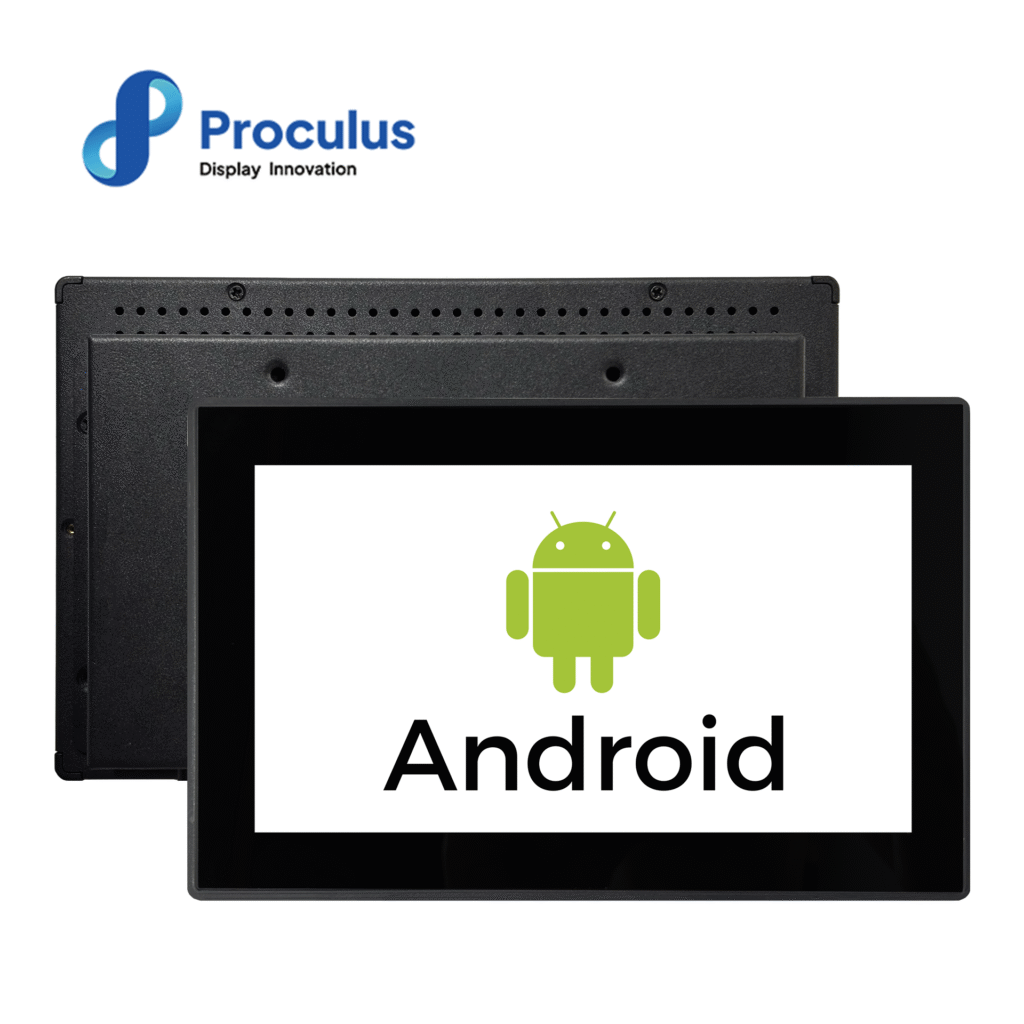

P10600HY070C_B01_2 is an industrial Android serial port LCD screen based on Rockchip RK3128 ARM processor. The product integrates the excellent features of Rockchip RK3128, with a quad-core Cortex-A7 solution, supporting most of the mainstream decoding schemes under 1080p@60fps and H.265/H.264/MVC/VP8 decoding schemes under 1080p@30fps. At the same time, good JPEG image processing performance and 3D GPU make the platform compatible with OpenGL ES 2.0, OpenVG1.1.

Specifications of 7.0 Inch 1024*600 Android LCM

Core Performance
CPU	1.3GHz Quad-core A7 ARM
RAM	1GB DDR3
eMMC	8GB eMMC
GPU	Mali400 MP2
Power Manager	ACT8846 PUM

System Version
Android	Android 5.1/7.1
Linux	—

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 1024×600
View Area Size	155.96 mm(W)×88.87mm(H), 1024×600
Resolution	1024×600
Backlight Mode	LED
Luminance	500nit

Expansion Device
MIC	3.5mm interface
Speaker	4W output
Buzzer	Nonsupport
GPIO	Nonsupport
IIC	Nonsupport
TF Card	Support
HDMI OUT	Nonsupport
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	12	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	75	85	—	Deg
	θR	Φ=0° (3 o’clock)	75	85	—
	θT	Φ=90° (12 o’clock)	75	85	—
	θB	Φ=270° (6 o’clock)	75	85	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	2*RS232/TTL	User Interface	12Pin_2.0mm

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB Debug1. USB HOST2	WIFI	Support 802.11b/g/n Wi-Fi 2.4G
Bluetooth	Optional	4G	4G /GPS (Optional）
Ethernet	Support 10m/100m*1	Gyroscope	—
NFC	—	Light sensor	—
