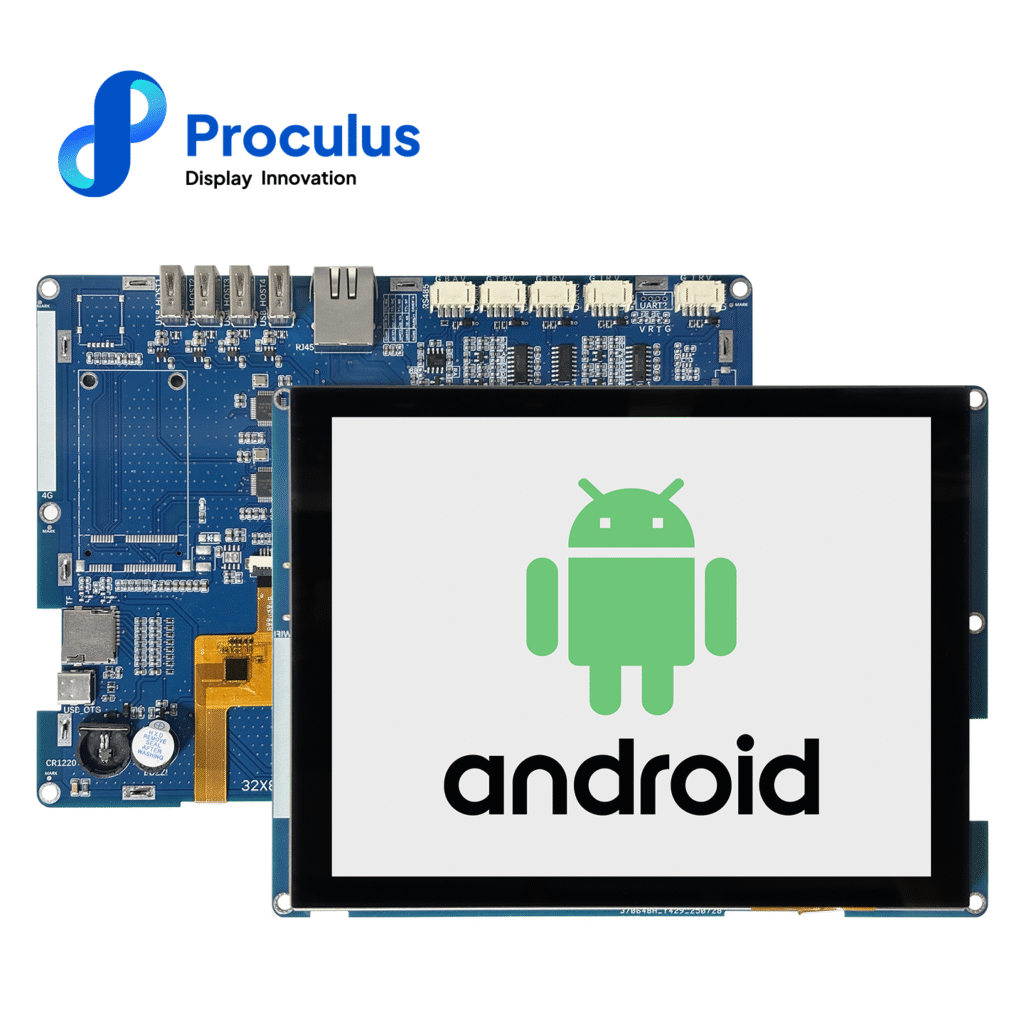

P10768HY080P

P10768HY080P is an industrial level Android LCM based on Rockchip RK3288 ARM. It is equipped with Quad-core Coretex-A17, supports most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps and many other great features of Rockchip RK3288. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1. RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 8 Inch Android LCD module

Core Performance
CPU	1.8GHz Quad-core A17 ARM
RAM	2GB DDR3
eMMC	Default 8GB, Support 16/32/64GB
GPU	Mali-T764 MP4
Power Manager	ACT8846 PMU

System Version
Android	Android 5.1/7.1
Linux	Support Ubuntu15.04

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	162.05 mm(W)×121.54 mm(H), 1024×768.
View Area Size	164.5 mm(W)×124.12mm(H), 1024×768.
Resolution	1024×768
Backlight Mode	LED
Luminance	350nit

Expansion Device
MIC	Audio input interface
Speaker	4W output
Buzzer	Support
GPIO	Optional
IIC	Nonsupport
TF Card	Support
HDMI OUT	Support
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	6	12	26	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	75	85	—	Deg
	θR	Φ=0° (3 o’clock)	75	85	—
	θT	Φ=90° (12 o’clock)	75	85	—
	θB	Φ=270° (6 o’clock)	75	85	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	3RS232/TTL, 1RS232/TTL/RS485	User Interface	8Pin_2.54mm

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB Debug1. USB HOST4	WIFI	Support 802.11b/g/n Wi-Fi 2.4G
Bluetooth	Optional	4G	4G /GPS (Optional）
Ethernet	Support 10m/100m/1000m*1	Gyroscope	—
NFC	—	Light sensor	—
