P80480HY070P_F31

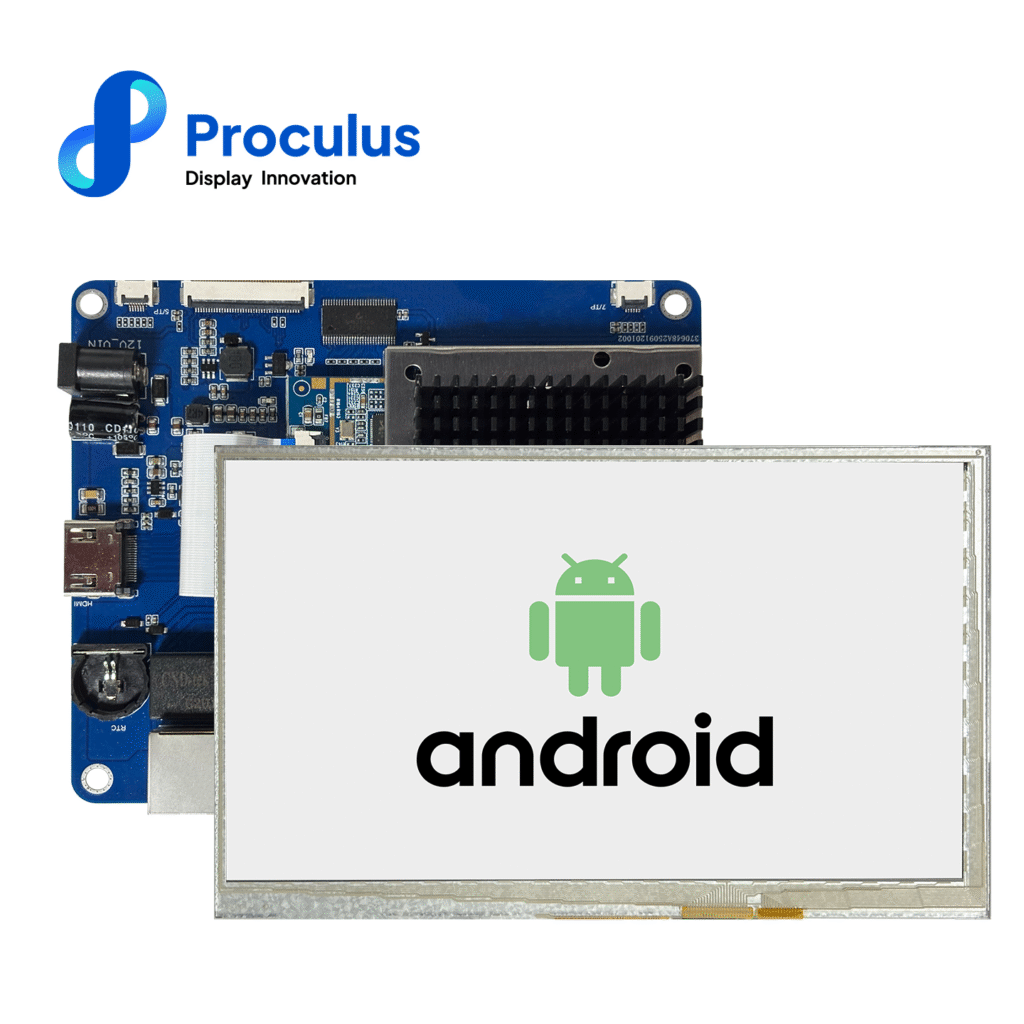

P80480HY070P_F31 is an industrial-grade Android LCM platform product based on the Rockchip RK3288 ARM. The product is a basic configuration separate type. It is equipped with a quad-core Coretex-A17 processor and supports most decoding schemes under 1080p@60fps, including H.265/H.264/MVC/VP8 schemes. It also possesses many other outstanding features of Rockchip RK3288. In addition, it has excellent JPEG image processing performance and 3D GPU, supporting OpenGL ES2.0 and 1.1 OpenVG1.1. RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 7.0 Inches, 800xRGBx480, 16.7M Colors, Android LCM

Core Performance
CPU	1.8GHz Quad-core A17 ARM
RAM	2GB DDR3
eMMC	8/16/32/64GB
GPU	Mali-T764 MP4
Power Manager	ACT8846 PMU

System Version
Android	Support Android 5.1/7.1/8.1
Linux	Support Ubuntu 18.04

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 800×480
View Area Size	155.96 mm(W)×88.87mm(H), 800×480
Resolution	800×480
Backlight Mode	LED
Luminance	300

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	—
GPIO	Nonsupport
IIC	Nonsupport
TF Card	Support
HDMI OUT	Support
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	12	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	70	80	—	Deg
	θR	Φ=0° (3 o’clock)	70	80	—
	θT	Φ=90° (12 o’clock)	50	60	—
	θB	Φ=270° (6 o’clock)	60	70	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	1RS232/TTL, 1 RS485	User Interface	–

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 2.0 HOST*1	WIFI	Support 802.11b/g/n Wi-Fi 2.4G/5G
Bluetooth	Bluetooth 4.0	4G	—
Ethernet	Support 10m/100m/1000m Ethernet	Gyroscope	—
NFC	—	Light sensor	—
