P40400J24CR

Features of 7.0 Inch 1024*600 LCD Module

Support wide range of power supply: Default is 4.5~25V
Support TTL/CMOS, the max baud rate is 3,125 Mbps;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.

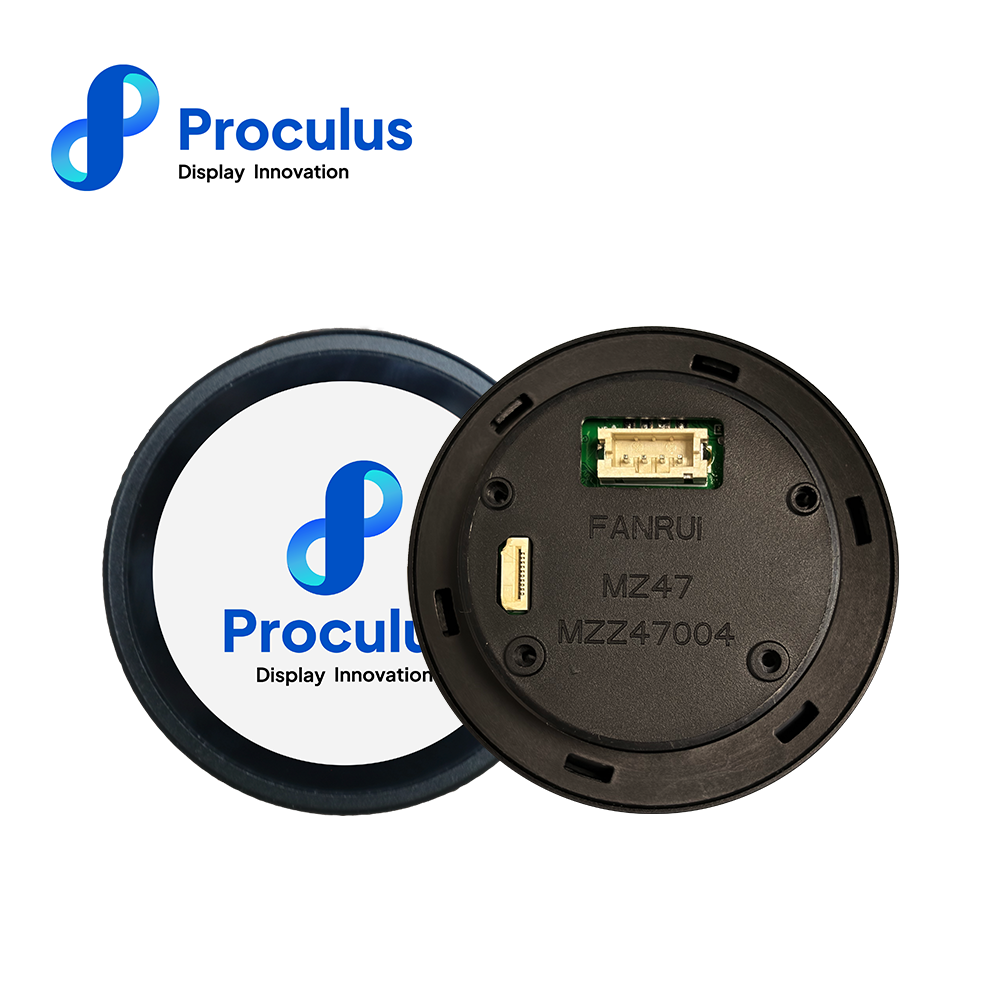

Specifications of 2.4 Inch 400*400 LCD Module

Display

Color			64K (65536) colors,16 bit color 5R6G5B
Resolution			400 x RGB x 400
Panel Type			IPS,TFT-LCD
Viewing Angle			Full viewing Angle, typical value 85°/85°/85°/85°(L/R/U/D)
Brightness			400 cd/m² Without a touch
			350 cd/m² With the touch
Active area (A.A)			39.84mm(W)×39.84mm(H)
Backlight			LED ≥10000H (Continuous working with maximum brightness, time of brightness halves)
Life Time			20000H
Note: If the high contrast static display exceeds 30 minutes or more may cause LCD screen residual, it is recommended to increase the screensaver to avoid this problem.
Voltage & Current

Item				Min.		Typ.	Max.	Unit	Notes
Power Voltage				3		5	5.5	V	–
Current、Power	Backlight on			–		110	–	mA	–
				–		0.55	–	W	–
	Backlight off			–		50	–	mA	–
				–		0.25	–	W	–
Note: Recommended Power Supply +5V 1A DC
Interface

Item		Condition				Min.	Typ.	Max.	Unit
Baud Rate		Standard				1200	—	921600	bps
Output		Output 1,Iout=1mA				3.0	3.3	—	V
		Output 0,Iout=-1mA				—	0	0.3	V
Input		Input 1, Iin=1mA				2.4	3.3	5.0	V
		Input 0, Iin=-1mA				0	—	0.5	V
Interface		Mode：8N1，TTL
Socket		ZH1.5-4PLT
System & Peripherals

System				LVGL
Touchscreen Panel				Capacitive
Buzzer				Yes
RTC				–
Audio				–
SD Card				Yes (SD/SDHC, FAT32，4096) (Update the firmware, pictures, font, and other files)
Memory
Flash					16Mbyte (128Mbits)
Other Info
Working Temperature					-20℃~70℃
Storage Temperature					-30℃~80℃
Certification & Levels					IEC4,CE,RoHS
Dimension					59.00mm(W) x 59.00mm(H) x 26.30mm(MAX)
