P10600HY070O_T01

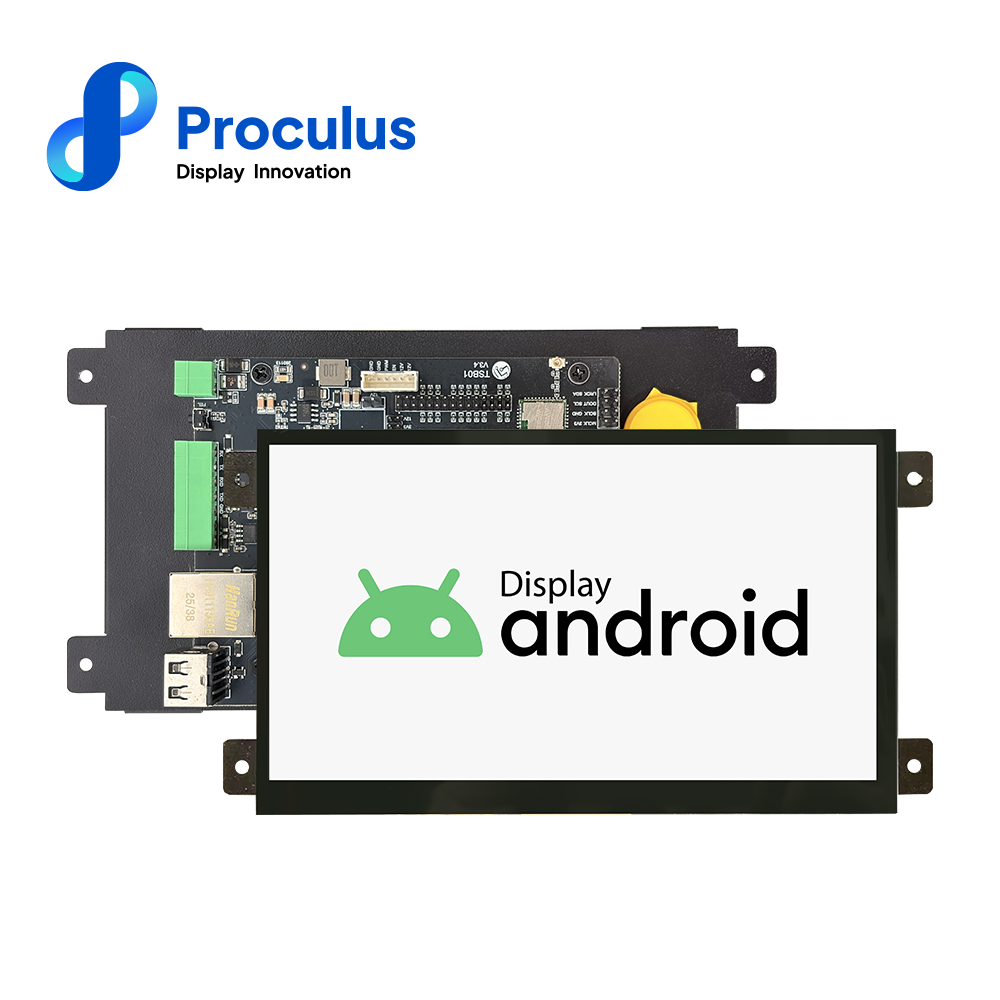

P10600HY070O_T01 is an industrial-grade Android serial port LCD screen based on the Allwinner A133 processor. This product integrates a 4-core Arm® Cortex®-A53 CPU and Imagination PowerVR GE8300 GPU, featuring powerful hardware encoding and decoding capabilities and a rich set of screen interfaces. Video decoding supports up to 4K@30fps decoding and 1080P@60fps encoding, offering enhanced performance, lower power consumption, and stronger graphics processing capabilities.

Specifications of 7.0 Inch 1024*600 Android LCM

Core Performance
CPU	Quad-Core Arm Cortex-A53, up to 1.7GHz
RAM	1G/2G/4G LPDDR4
eMMC	8G/32GB EMMC
GPU	Imagination PowerVR GE8300
NPU	—

System Version
Android	Support Android 10
Linux	Support ubuntu18.04+qt5.12、Ubuntu18.04+xfce

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	154.21 mm(W)×85.92 mm(H), 1024×600
View Area Size	155.96 mm(W)×88.87mm(H), 1024×600
Resolution	1024×600
Backlight Mode	LED
Luminance	350

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	—
GPIO	—
IIC	Support
TF Card	—
HDMI OUT	—
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	12	12	24	V
Working Current	—	—	400	—	mA
Power	12V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle（CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	70	80	—	Deg
	θR	Φ=0° (3 o’clock)	70	80	—
	θT	Φ=90° (12 o’clock)	50	60	—
	θB	Φ=270° (6 o’clock)	60	70	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	80	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	无	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	–	User Interface	–

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 2.0 HOSTx1. USB OTGx1	WIFI	Support802.11a/b/g/n/ac/ax Wi-Fi 2.4/5G
Bluetooth	Bluetooth 5.2	4G	—
Ethernet	Support 10m/100m/1000m Ethernet	Gyroscope	—
NFC	—	Light sensor	—
M.2	—	Infrared receiver	—
