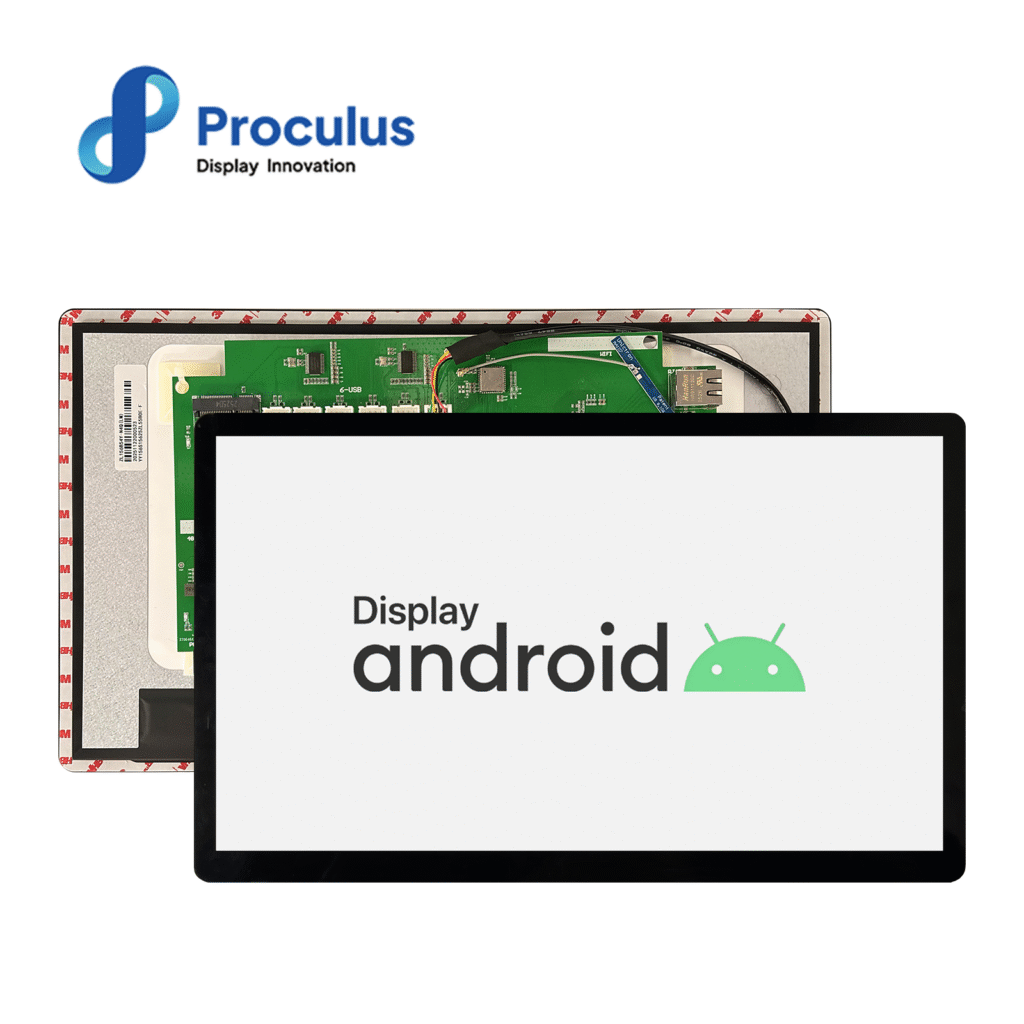

P19108HY156K_T01

P19108HY156K_T01 is an industrial level Android LCM based on Rockchip RK3568 ARM. It is equipped with Quad-core Coretex-A55, supporting most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions and many other great features of Rockchip RK3568. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and OpenVG1.1. Rockchip RK3568 has high-performance external memory interface (DDR4/DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 15.6 Inch 1920*1080 Android LCM

Core Performance
CPU	2.0GHz Quad-core A55 ARM
RAM	2GB DDR4
eMMC	Default 8GB, Support 16/32/64GB
GPU	Mali-G52
Power Manager	RK809-5

System Version
Android	Support Android 11/12/13
Linux	Support Linux+QT5.12

Display Performance
Display Color	16.7M (16777216) colors, 24-bit color 8R8G8B
Display Size	344.16 mm(W)×193.59 mm(H), 1920×1080
View Area Size	350.66mm(W)×205.23mm(H), 1920×1080
Resolution	1920×1080
Backlight Mode	LED
Luminance	300

Expansion Device
MIC	Audio input interface
Speaker	Audio output interface
Buzzer	Support
GPIO	Nonsupport
IIC	Support
TF Card	Support
HDMI OUT	Nonsupport
USB Camera	Support

Voltage Current
Parameter	Condition	Min	Typ	Max	Unit
Working Voltage	—	24	24	24	V
Working Current	—	—	400	—	mA
Power	24V 2A DC (Recommended)

Visual Angle Parameter
Visual Angle （CR≥10）	Angle	Angle Parameter	Min	Typ	Max	Unit
	θL	Φ=180° (9 o’clock)	—	89	—	Deg
	θR	Φ=0° (3 o’clock)	—	89	—
	θT	Φ=90° (12 o’clock)	—	89	—
	θB	Φ=270° (6 o’clock)	—	89	—

Reliability Testing
Parameter	Condition	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	70	℃
Storage Temperature	—	-30	25	85	℃
Working Humidity	25℃	10%	60%	90%	RH
Protection Paint	—	—	NONE	—	—

Serial Port Parameter
Parameter	Condition	Min	Typ	Max	Unit
Baud Rate	Standard	1200	9600	115200	bps
Serial Mode	2*RS232/TTL	User Interface	–

Interface Parameter
Interface	Parameter	Interface	Parameter
USB	USB 3.0 OTG1. USB 2.0 HOST6	WIFI	Support 802.11b/g/n Wi-Fi 2.4G/5G
Bluetooth	Bluetooth 4.2	4G	4G /GPS (Optional）
Ethernet	Support 10m/100m/1000m Ethernet	Gyroscope	—
NFC	—	Light sensor	—
