Features of 3.5 Inch 320*240 LCD Module

  • Support RS232,TTL/CMOS, the max baud rate is 921600bps

  • Support TTL/CMOS, the max baud rate is 3,125 Mbps;

  • Support avi-video

  • Support 1 CVBS analog video signal input display

  • Support offline batch download through SD-Card, which improves download efficiency and reduce requirements for operators;

  • Support multi-language font library, picture, QR code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

Specifications of 3.5 Inch 320*240 LCD Module

Display
Color 64K (65536) colors,16 bit color 5R6G5B
Resolution 320×240 ，90°rotated display (240*320)
Panel Type TN,TFT-LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
Brilliance 300 cd/m²Without a touch
250 cd/m²With the touch
Active area (A.A) 72.3mm(W) x 54.8mm(H)
Backlight LED
Life Time 30000H
  Voltage & Current
Item Min. Typ. Max. Unit Notes
Power Voltage 5 12 15 V –
VCC=+12V ，Backlight on – 90 – mA –
VCC=+12V ，Backlight off – 40 – mA
Output voltage 3 3.3 – V High level
– 0 0.3 V Low level
Input voltage 2.4 3.3 5 V High level
0 – 0.5 V Low level
  Interface
Item Condition Min. Typ. Max. Unit
Baud Rate Standard 1200 — 921600 bps
Interface Mode：8N1 ，J6 ON = +3.3V TTL/CMOS; OFF = RS232
Socket HY2.0-8P
  Peripherals
Touchscreen Panel Resistive
Buzzer –
RTC –
Audio –
SD Card Yes (SD/SDHC, FAT32 ，4096)               (Update the firmware, pictures, font, and other files)
  Memory
Flash 16Mbyte (128Mbits)
  Other Info
Working Temperature -20℃~70℃
Storage Temperature -30℃~85℃
Certification & Levels IEC4、CE、RoHS
Net Weight 75g
Dimension 93mm  (W)  x 70mm  (H)  x 14.8mm / 16.3mm  (T)

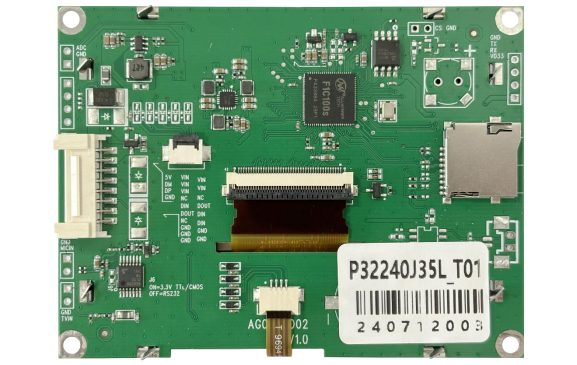

    Interface Description


Item Description
1 SD Card Connector
2 VCC,VCC,BUSY,DOUT,DIN,DIN,GND,GND

Idx Lead Description
1 VCC power input
2 VCC
3 BUSY –
4 DOUT -Serial transmission
5 DIN Serial port reception
6 DIN
7 GND –
8 GND –
